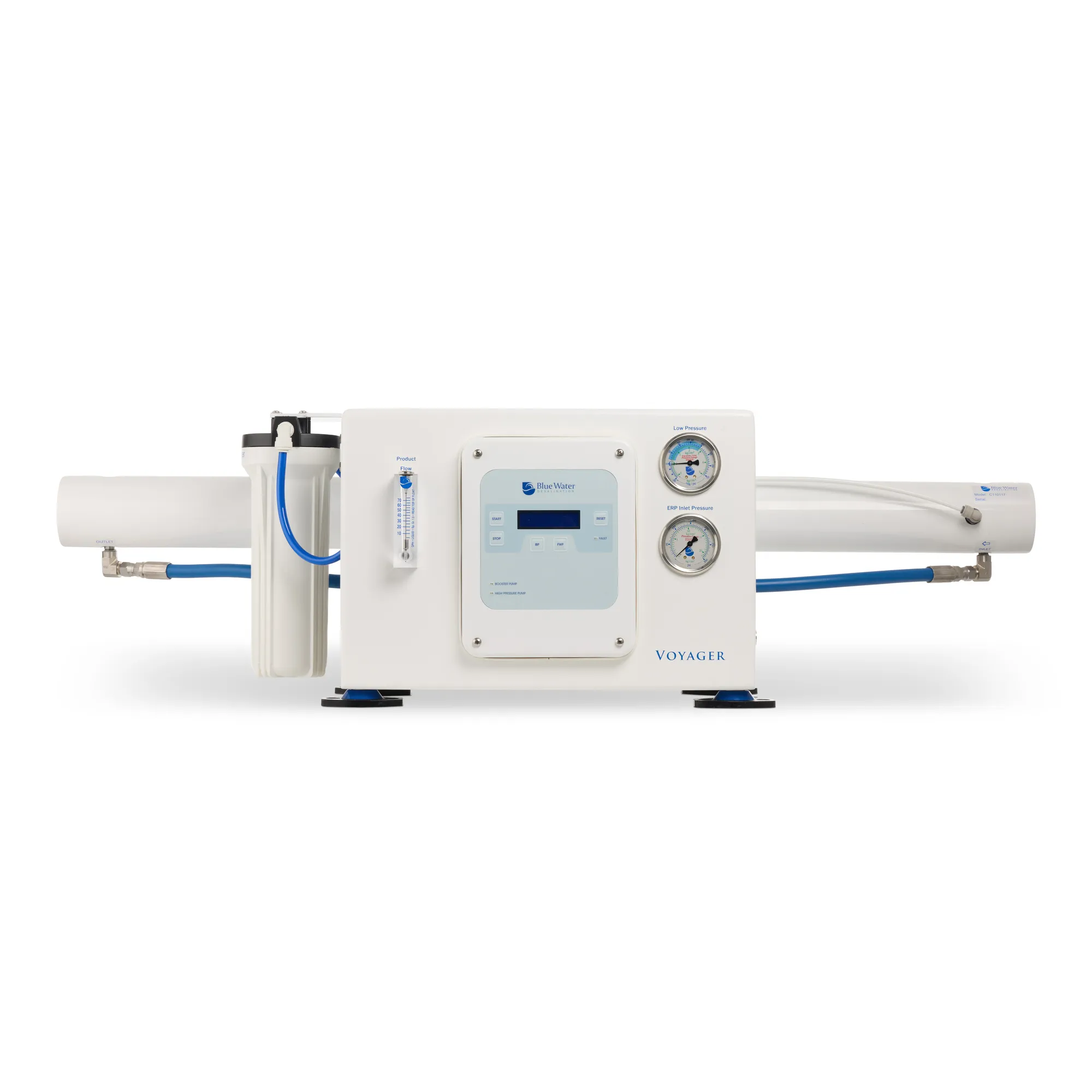

Voyager Series
Available in 400 GPD or 600 GPD capacities (1,515 LPD or 2,270 LPD)
The Blue Water Voyager watermakers feature a smooth and nearly silent dual piston energy recovery pump to produce 16 or 25 gallons of pure water per hour (60 or 95 liters per hour). The system was engineered with today’s cruising yachts that rely solely on DC power while away from the marina in mind. Automatic operation and an automatic fresh water flush make the Voyager a perfect fit for both owner operators and charter yachts.
- Fully Automatic Operation
- Fresh Water Flush system
- High Rejection membrane
- Product water Carbon filter
- Stainless steel vane pump
- Quiet and reliable high pressure pumps
- Designed for ease of service & maintenance
- Includes booster pump for increased filter life
- One-touch operation
- Simple controller with digital display
- Available in 12V, 24V, 48V DC
- Optional remote control
- Low-pressure safety switch
- High-Pressure monel transducer
- Adjustable FWF interval up to 10 days
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses
- Touch Pad Remote with Bezel – With 45 ft. cable
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
| Model # | No. of Membranes | Production / hour | Production / 24 hour | Weight (lbs. / kg.) |
|---|---|---|---|---|
| VOYAGER 400-1 | 1 | 16 Gal / 60 L | 400 Gal / 1,515 L | 105 / 48 |
| VOYAGER 400-2 | 1 | 16 Gal / 60 L | 400 Gal / 1,515 L | 115 / 52 |
| VOYAGER 600-1 | 1 | 25 Gal / 95 L | 600 Gal / 2,270 L | 105 / 48 |
| VOYAGER 600-2 | 2 | 25 Gal / 95 L | 600 Gal / 2,270 L | 115 / 52 |
| Model # | Feed Flow Run Amps |
HP Pump |
HP Pump Run Amps | Total Run Amps | |||
|---|---|---|---|---|---|---|---|
| 12V DC | 24V DC | All Voltages | 12V DC | 24V DC | 12V DC | 24V DC | |
| VOYAGER 400 | 4 | 2 | 0.5 HP / 0.37 kW | 27 | 14 | 31 | 16 |
| VOYAGER 600 | 4 | 2 | 0.75 HP / 0.37 kW | 47 | 24 | 51 | 26 |
Voyager Brochure
- Product Brochure (pdf)
System Drawings
- Voyager Compact (pdf)
- Fresh Water Flush (pdf)
- 10″ Dual 5-20 Micron Filter (pdf)
- 400 GPD Membrane (pdf)
- 600 GPD Single Membrane (pdf)
- 600 GPD Dual Membranes (pdf)
- Pump Motor Assembly for Voyager 400 (pdf)
- Pump Motor Assembly for Voyager 600 (pdf)
- Standard Booster Pump (pdf)
- Remote Display (optional)Â (pdf)
- UV Sterilizer (optional)Â (pdf)
