Explorer XL Series
Available capacities range from 3,600 GPD to 6,200 GPD (13,500 LPD to 23,500 LPD)

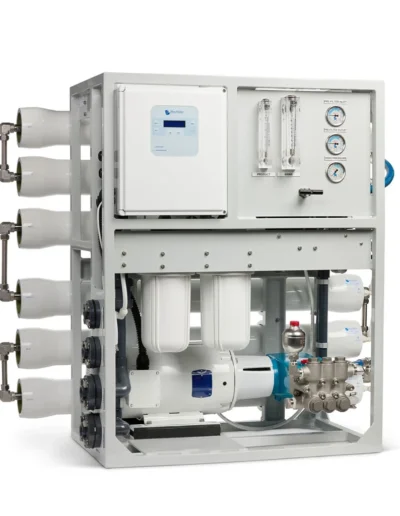

The Blue Water Explorer XL series of watermakers offers semi-automatic operation in a wide range of capacities to fit the needs of large yachts, small cruise ships, and commercial vessels. The open vertical frame increases access for service while minimizing its equipment space footprint. The standard fresh water flush feature increases membrane life, while the optional Media Filter can extend service intervals between filter changes. This robust system is built for reliability, making it an excellent choice for vessels that require consistent, high-quality water production. Its advanced design ensures long-term performance with minimal upkeep.
- Fresh Water Flush system
- High Rejection membranes
- Quiet and reliable high-pressure pumps
- Product water Carbon filter
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance
- Installation kit
- Semi-Automatic operation
- Simple controller with LCD display
- Optional remote control
- Compact vertical design
- Expandable to 6,200 gallons per day
- High and low-pressure safety switches
Explorer XL
Explorer XL
Explorer XL
Explorer XL
Explorer XL
Explorer XL
Explorer XL
Explorer XL
- Media Filter- Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- Touch Pad Remote with Bezel – With 75 ft. cable
- Touch Pad Remote with Bezel – With 100 ft. cable
- Touch Pad Remote with Bezel – With 150 ft. cable
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
| Model | No. of Membranes | Hourly Production | Daily Production | Feed Flow (GPM) | Weight (lbs) |
|---|---|---|---|---|---|
| XL 3600 | 3 | 150 GPH | 570 LPH | 3,600 GPD | 13,500 LPD | 15.5 | 600 |
| XL 4800 | 4 | 200 GPH | 760 LPH | 4,800 GPD | 18,150 LPD | 15.5 | 650 |
| XL 5500 | 5 | 230 GPH | 870 LPH | 5,500 GPD | 20,800 LPD | 15.5 | 700 |
| XL 6200 | 6 | 260 GPH | 980 LPH | 6,200 GPD | 23,500 LPD | 15.5 | 750 |
HP Motor
| Pump Type | Voltage (VAC) | Frequency (Hz) | Horsepower (HP) | Full Load Amps (FLA) |
|---|---|---|---|---|
| Plunger Pump | 230V | 60 | 10 | 25A |
| 460V | 60 | 10 | 12.5A | |
| Radial Axial Pump (optional) | 230V | 60 | 10 | 23.2A |
| 460V | 60 | 10 | 11.6A |
Booster Pump Motor
| Voltage (VAC) | Frequency (Hz) | Horsepower (HP) | Full Load Amps (FLA) |
|---|---|---|---|
| 230V | 60 | 2 | 4A |
| 460V | 60 | 2 | 2A |
Explorer XL Model Standard Features
- Product Brochure (pdf)
- Explorer XL (pdf)
- Booster Pump-Three Phase (pdf)
Explorer XL Model Optional Equipment
