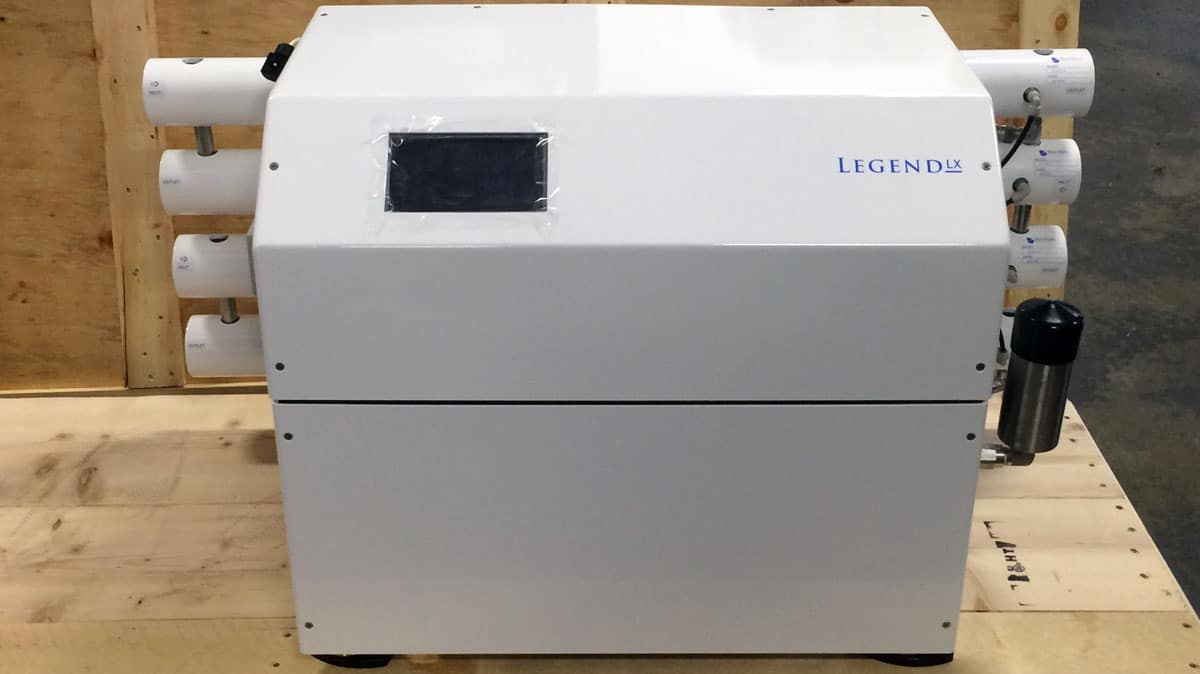

Legend LX Series
Available capacities range from 2,100 GPD to 3,400 GPD (7,950 LPD to 12,870 LPD)
Our newest member of the Blue Water Legend series is the all-new LX – a fully automatic Megayacht/Commercial size watermaker. It uses leading-edge technology to provide fully automatic operation and the systems feature a 7” full-color touch screen that provides an intuitive interface between the user and the system. The Legend LX offers one-touch operation and continuous monitoring to maximize product water production and quality.
- Fresh Water Flush system
- Quiet and reliable high pressure pump
- High Rejection membranes
- Product water Carbon filter
- Dual voltage 50/60 Hz motors
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance

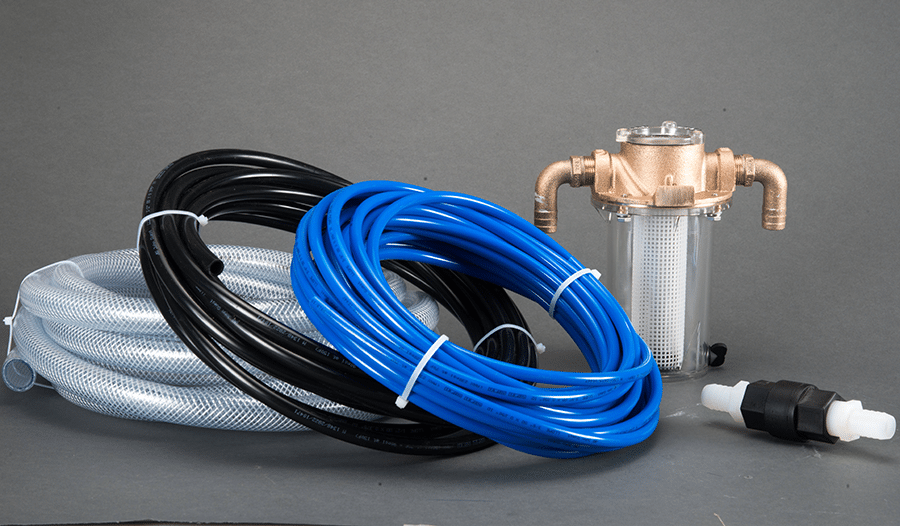

- Installation kit including bronze sea strainer
- Fully Automatic

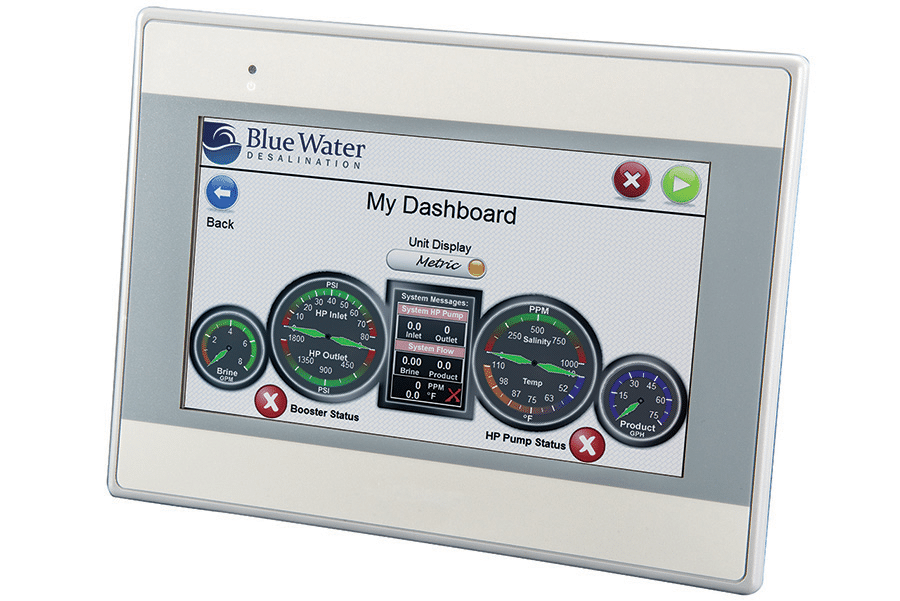

- Industry leading 7″ full color icon driven touch screen controller
- Monel transducers for longer life
- Product water pH filter
- NMEA 2000 compatibility available
- Optional 4.3″ or 7″ Remote Touch Screen control
- Expandable to 3,400 gallons per day
- Available in both compact frame and modular component style configurations

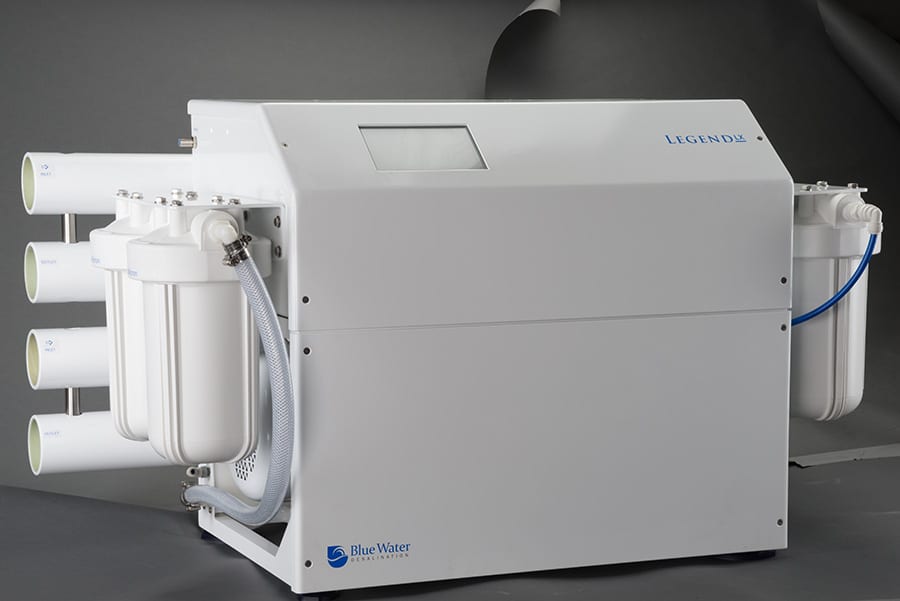

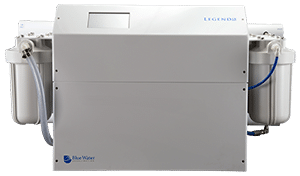

Legend LX Compact
Legend LX
Compact
Legend LX Compact
Legend LX
Compact
Legend LX Compact
Legend LX
Compact
Legend LX Frame Only
Legend LX
Frame Only
Legend LX Frame Only
Legend LX
Frame Only
Legend LX Frame Only
Legend LX
Frame Only
Legend LX Modular Frame
Legend LX
Modular Frame
Legend LX Modular Frame
Legend LX
Modular Frame
Legend LX Modular Frame
Legend LX
Modular Frame

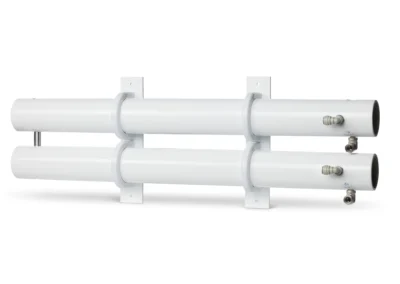

Watermaker Membrane
Watermaker Membrane
UV Sterilizer
UV Sterilizer

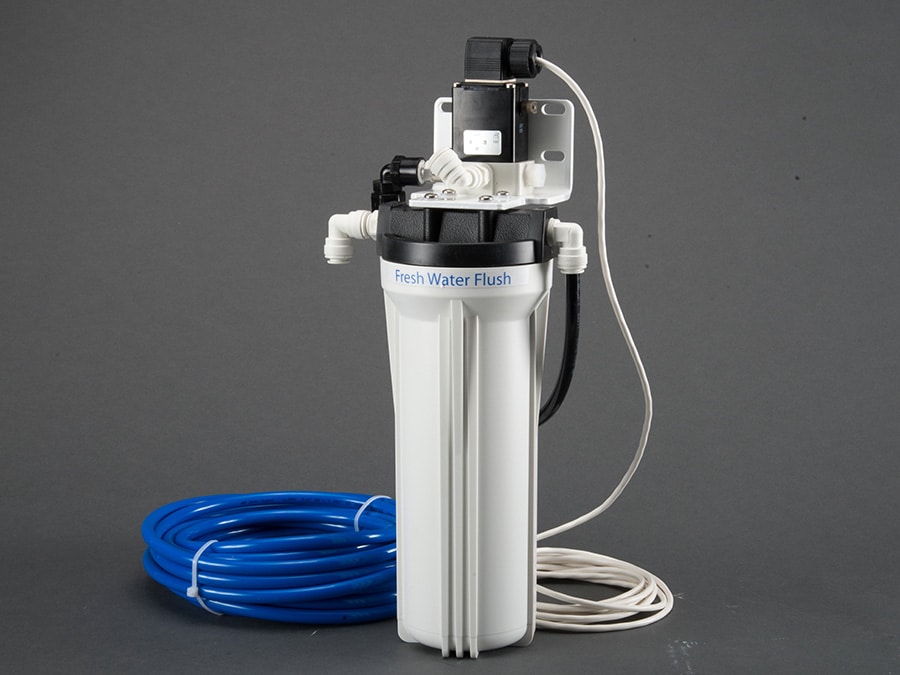

Fresh Water Flush
Fresh Water Flush

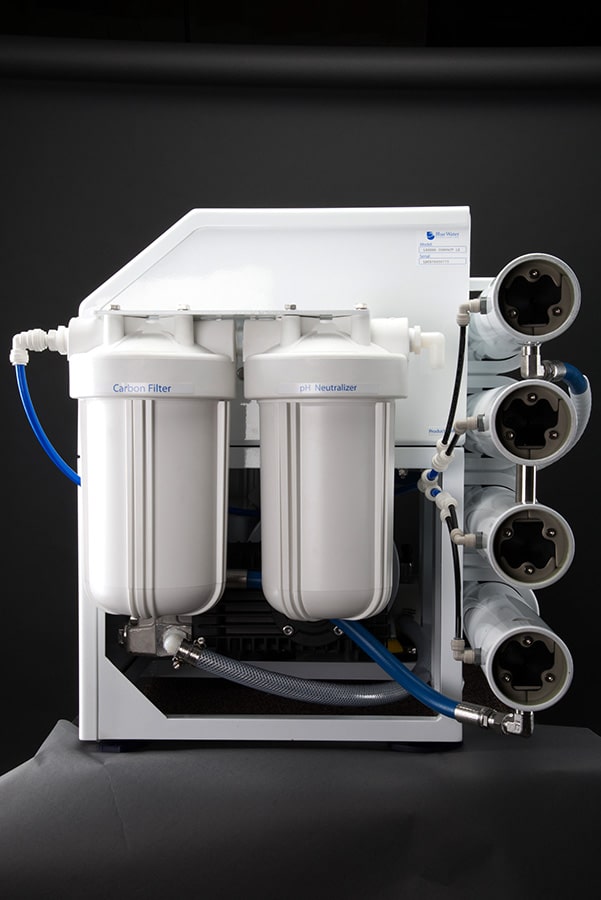

Carbon Filter and PH Neutralizer
Carbon Filter and PH Neutralizer
Carbon Filter and 1 Micron Filter
Carbon Filter and 1 Micron Filter
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses

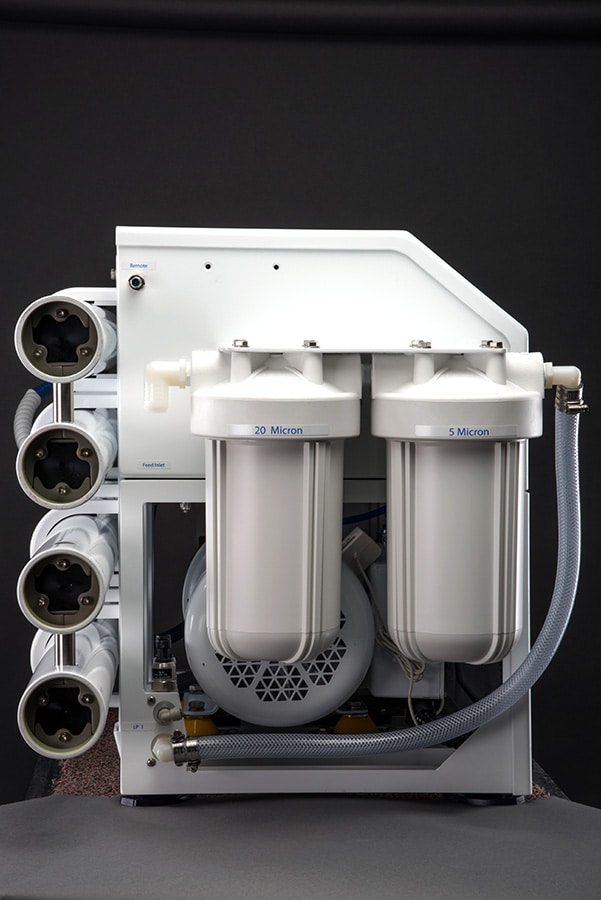

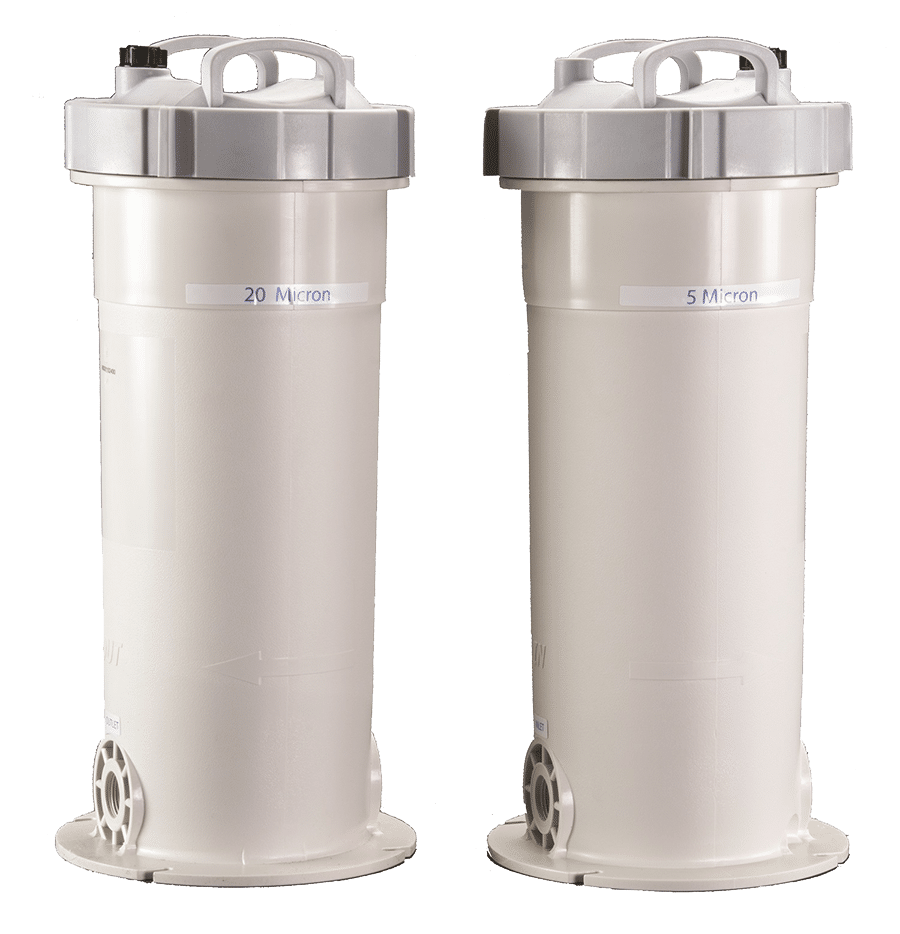

- Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
- Commercial Pre-Filter 20 Micron – Provides step-down filtration to extend the life of the primary 5 micron filter
- Oil Water Separator Assembly – Removes oil from feed water

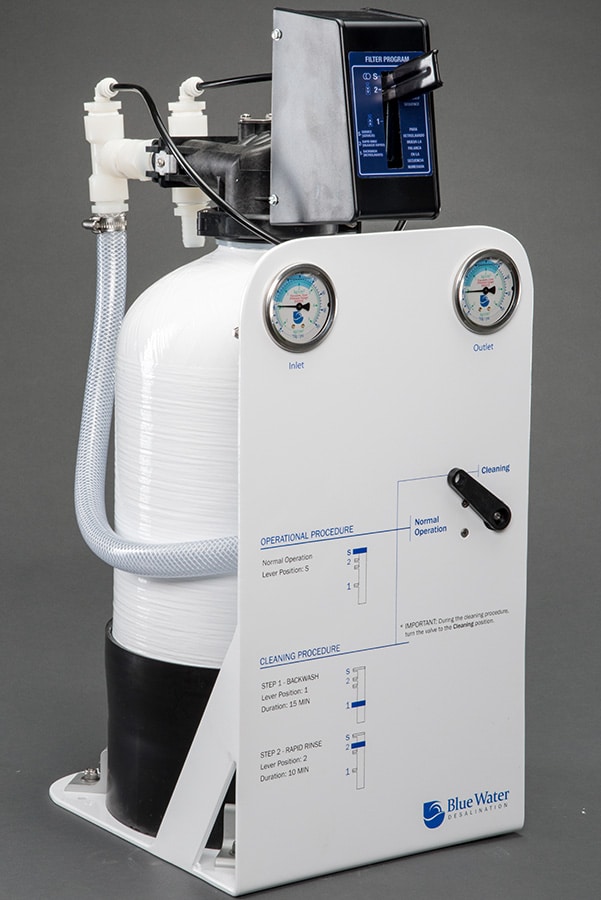

- Media Filter – Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- NMEA 2000 Option – Allows watermaker to integrate with NMEA 2000 bus
- LEGEND Remote (4.3″ | 75 ft) – Full function, 4.3″ color touch screen remote complete with 75 ft. cable
- LEGEND Remote (4.3″ | 100 ft) – Full function, 4.3″ color touch screen remote complete with 100 ft. cable
- LEGEND Remote (7″ | 75 ft) – Full function, 7″ color touch screen remote complete with 75 ft. cable
- LEGEND Remote (7″ | 100 ft) – Full function, 7″ color touch screen remote complete with 100 ft. cable
- Remote & UV – 4.3″ Controller (75 ft) and 2 GPM UV Sterilizer
- Remote & UV – 7″ Controller (75 ft) and 2 GPM UV Sterilizer
- Pocket DC Meter – Portable meter checks product water quality
| Model # | No. of Membranes | Production / hour | Production / 24 hour (Gallon / Liter) | Feed Flow GPM | Weight (lbs. / kg.) |
|---|---|---|---|---|---|
| LLX 2100 | 3 | 85 Gal. / 331 L | 2,100 / 7,950 | 7.6 | 360 / 163 |
| LLX 2600 | 4 | 108 Gal. / 410 L | 2,600 / 9,840 | 7.6 | 385 / 175 |
| LLX 2700 | 3 | 113 Gal. / 426 L | 2,700 / 10,220 | 7.6 | 390 / 176 |
| LLX 3200 | 4 | 133 Gal. / 505 L | 3,200 / 12,110 | 7.6 | 410 / 186 |
| LLX 3400 | 4 | 142 Gal. / 536 L | 3,400 / 12,870 | 7.6 | 410 / 186 |
| Model (Phase) | Booster Pump HP | kW | HP Pump HP | kW | Hz | Voltage | Run Amps | Start Amps |
|---|---|---|---|---|---|---|
| Single | 1 | 0.75 | 5 | 3.75 | 50/60 | 220 | 34 | 98 |
| Three | 1 | 0.75 | 5 | 3.75 | 50/60 | 208/230 | 22 / 18 | 48 / 40 |
| Three | 1 | 0.75 | 5 | 3.75 | 50/60 | 380/460 | 11 / 9 | 24 / 20 |
Legend LX Model Standard Features
- Product Brochure (pdf)
- Booster Pump-Single Phase (pdf)
- Booster Pump-Three Phase (pdf)
- Fresh Water Flush (pdf)
Legend LX Compact
- Legend LX Compact Frame (pdf)
Legend Modular
- Legend LX Modular Control Panel (pdf)
- Dual 5-20 Micron Filter (pdf)
- Post Filtration – pH & Carbon Filters (pdf)
- Pressure Vessel Assembly 2,100GPD / 2,600GPD (pdf)
- Pressure Vessel Assembly 2,700GPD / 3,200GPD / 3,400GPD (pdf)

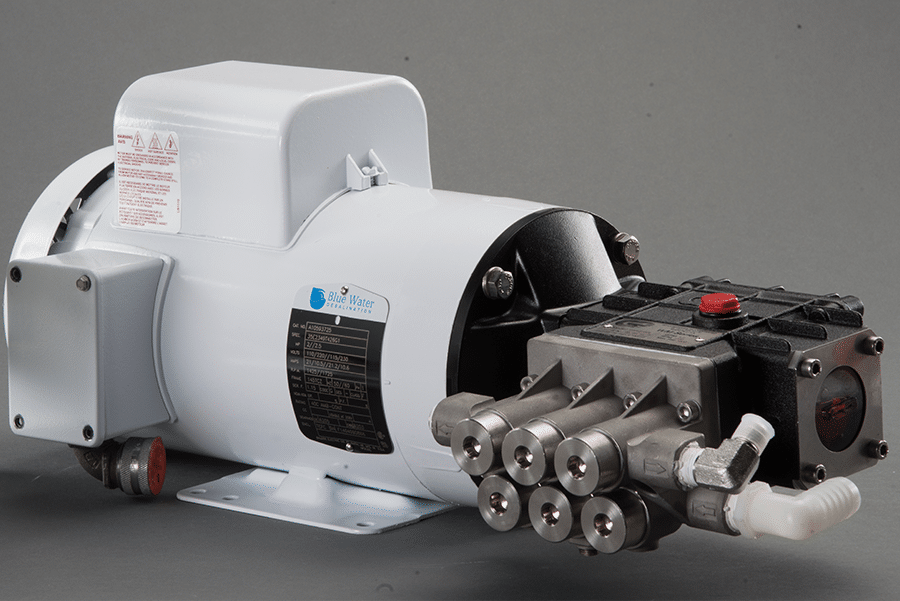

- High Pressure Pump-Single Phase (pdf)
Legend LX Model Optional Equipment
