Legend Series

Available capacities range from 475 GPD to 1850 GPD (1,800 LPD to 7,000 LPD)

The Blue Water Legend series uses leading-edge technology to provide fully automatic operation. The systems feature a 7” full-color touch screen that provides an intuitive interface between the user and the system. The main screen allows for one-touch start and stop functions while the proprietary software continuously monitors and adjusts the system to maximize water production and quality. Troubleshooting and maintenance are simplified by the wide array of data that is collected and accessible through the touch screen. The system comes complete with a Fresh Water Flush system and a pH Filter. The Legend series is the most sophisticated and easy to use watermaker on the market.

Fresh Water Flush system

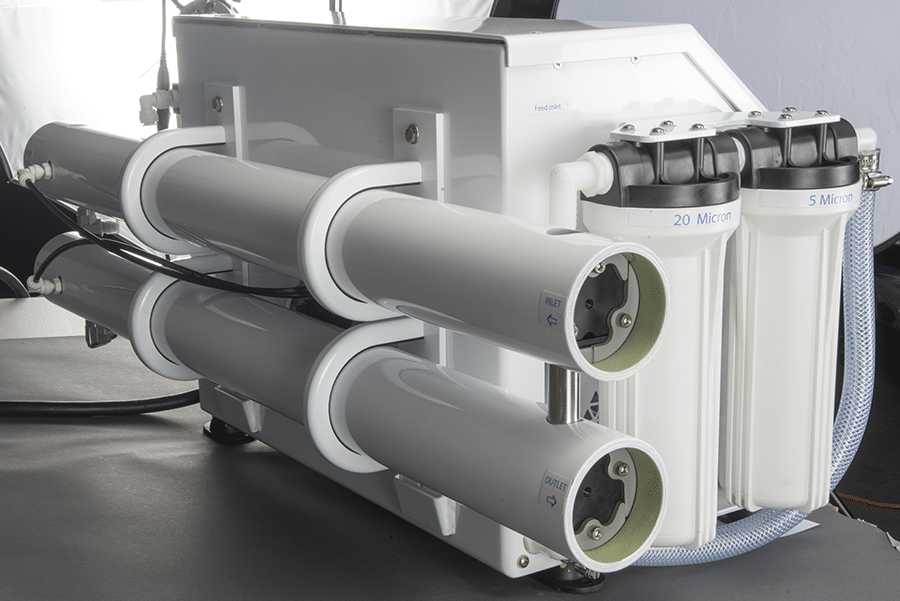

High Rejection membranes
Quiet and reliable high pressure pumps

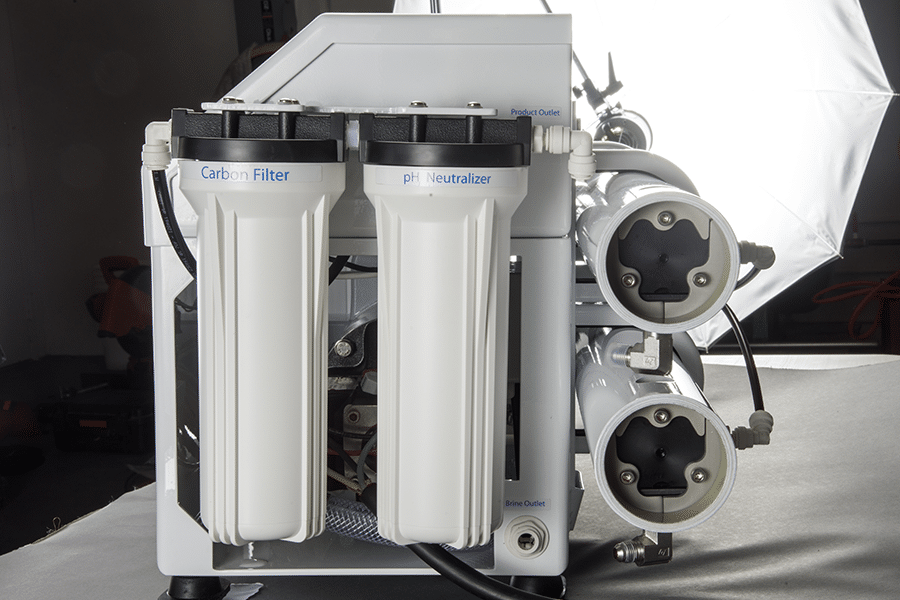

Product water Carbon filter
Dual voltage 50/60 Hz Motors
Stainless steel booster pump shaft
Designed for ease of service & maintenance
Installation kit including bronze sea strainer

Fully Automatic

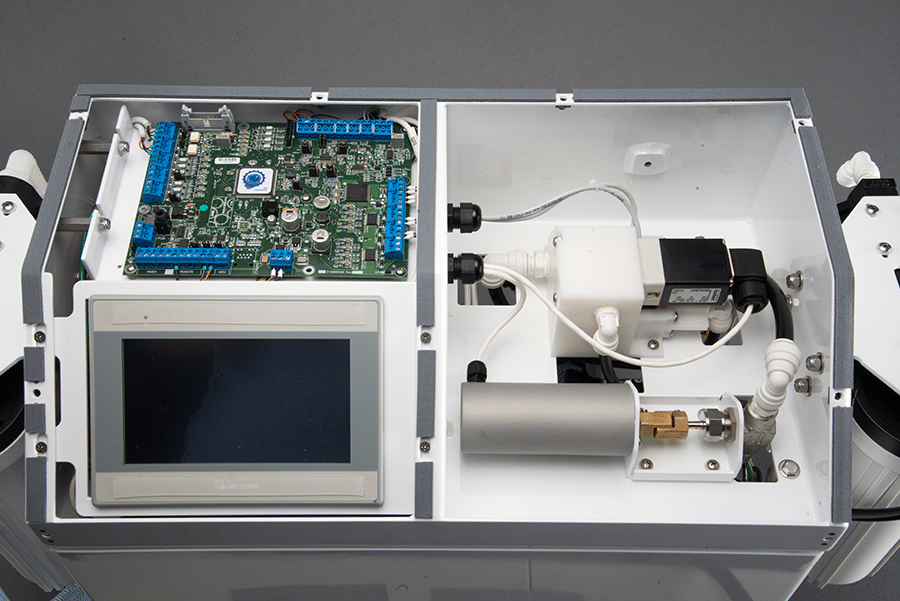

Industry leading 7” full-color icon driven touch screen controller
Monel transducers for longer life
Product water pH filter
NMEA 2000 compatibility available
Optional 4.3” remote touch screen control
Expandable to 1850 gallons per day

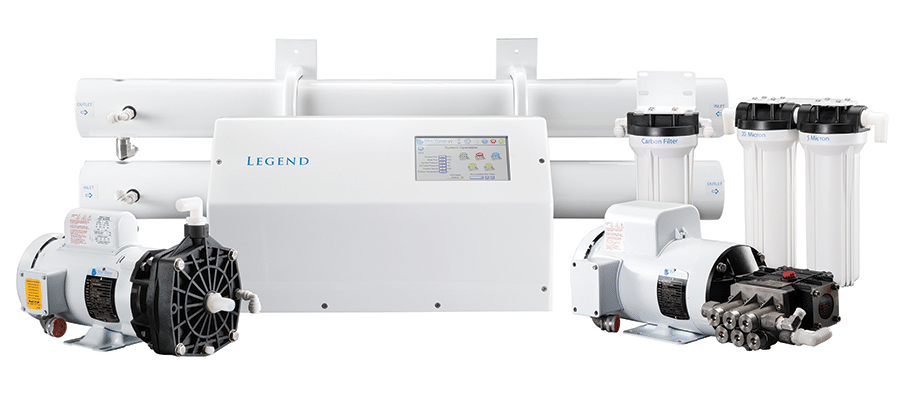

Available in both compact frame and modular component style configurations

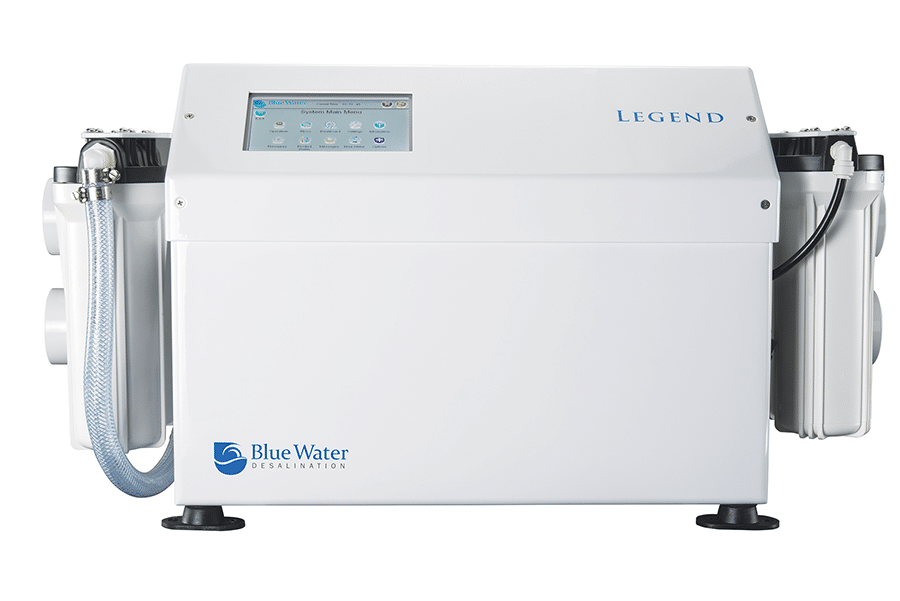

Legend Compact

Legend
Compact

Legend Compact

Legend
Compact

Legend Compact

Legend
Compact

Legend Compact

Legend
Compact

Legend Compact

Legend
Compact

Legend Watermaker

Legend
Compact

Optional Touch Screen Remote

Booster Pump

UV Sterilizer

High Pressure Pump

Fresh Water Flush

UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses

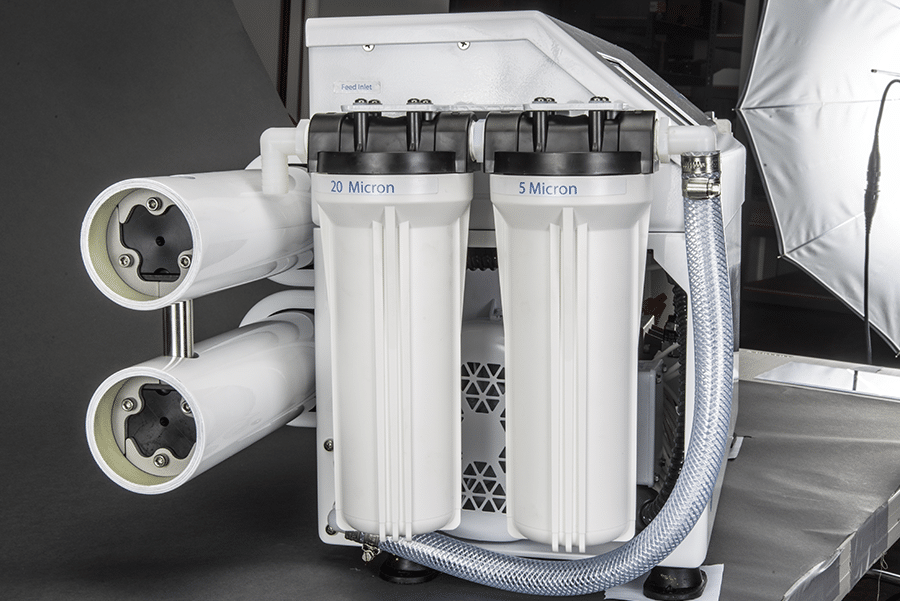

Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
Commercial Pre-Filter 20 Micron – Provides step-down filtration to extend the life of the primary 5 micron filter
Oil Water Separator Assembly – Removes oil from feed water
Media Filter – Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
NMEA 2000 Option – Allows watermaker to integrate with NMEA 2000 bus
LEGEND Remote (4.3″ | 75 ft) – Full function, 4.3″ color touch screen remote complete with 75 ft. cable
LEGEND Remote (7″ | 75 ft) – Full function, 7″ color touch screen remote complete with 75 ft. cable
Remote & UV – 4.3″ Controller (75 ft) and 2 GPM UV Sterilizer
Pocket DC Meter – Portable meter checks product water quality

Model #	No. of Membranes	Production / hour	Production / 24 hour (Gallon / Liter)	Feed Flow GPM	Weight (lbs. / kg.)
LGD 475	1	20 Gal. / 75 L	475 / 1,800	4.2	165 / 75
LGD 750	1	31 Gal. / 118 L	750 / 2,840	4.2	175 / 79
LGD 950-1	1	40 Gal. / 150 L	950 / 3,600	4.2	185 / 84
LGD 950-2	2	40 Gal. / 150 L	950 / 3,600	4.2	200 / 91
LGD 1200	2	50 Gal. / 189 L	1,200 / 4,540	4.2	215 / 98
LGD 1500	2	63 Gal. / 237 L	1,500 / 5,680	4.2	215 / 98
LGD 1850	2	77 Gal. / 292 L	1,850 / 7,000	4.2	230 / 104

Model (Phase)	Booster Pump HP \| kW	HP Pump HP \| kW	Hz	Voltage	Run Amps	Start Amps
Single	0.50 \| 0.37	2.5 \| 1.8	50/60	110/220	31 / 15.5	109 / 55
Three	0.50 \| 0.37	3.0 \| 2.2	50/60	208/230	10.6 / 8.9	37 / 36
Three	0.50 \| 0.37	3.0 \| 2.2	50/60	380/460	5.3 / 4.4	18 / 16
