Express XT Series
Available capacities range from 360 GPD to 950 GPD (1,360 LPD to 3,600 LPD)
The Blue Water Express XT watermakers feature fully automatic operation with capacities of up to 40 gallons per hour (150 liters per hour). These units were designed to fit into the tight spaces of small and mid-sized yachts. The one-touch operation makes the EXPRESS XT series ideal for applications where it is difficult to access the watermaker while the vessel is underway.
- Full Automatic Operation
- Fresh Water Flush system
- High Rejection membranes
- Product water Carbon filter
- Dual voltage 50/60 Hz motors
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance
- Installation kit including bronze sea strainer
- Optional Magnetic Drive Booster Pump available to lower overall start and run amp draw (360 GPD only)
- One-touch operation

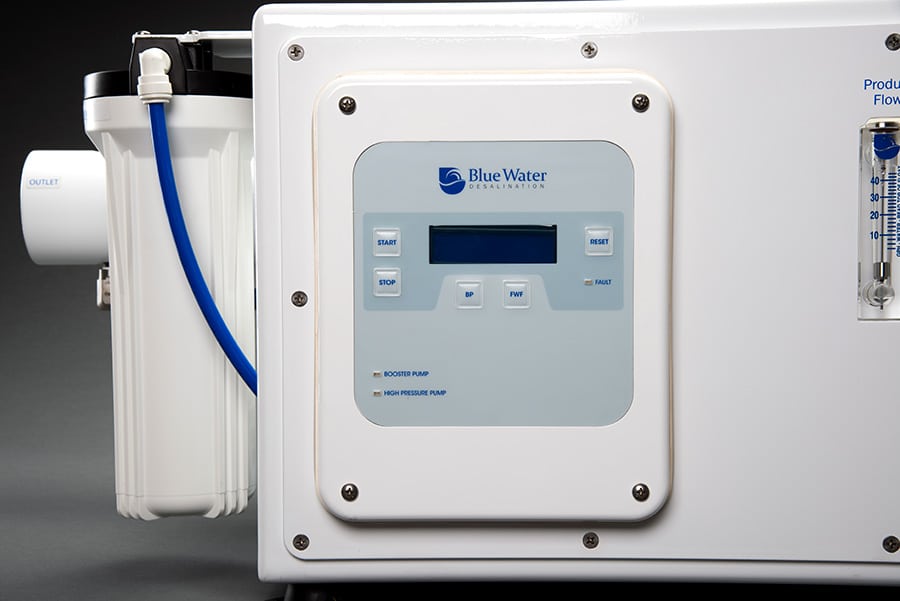

- Simple controller with digital display
- Optional remote control
- Low-pressure safety switch
- High-Pressure monel transducer
- Available in both compact frame and modular component style configurations
- Adjustable FWF interval up to 10 days

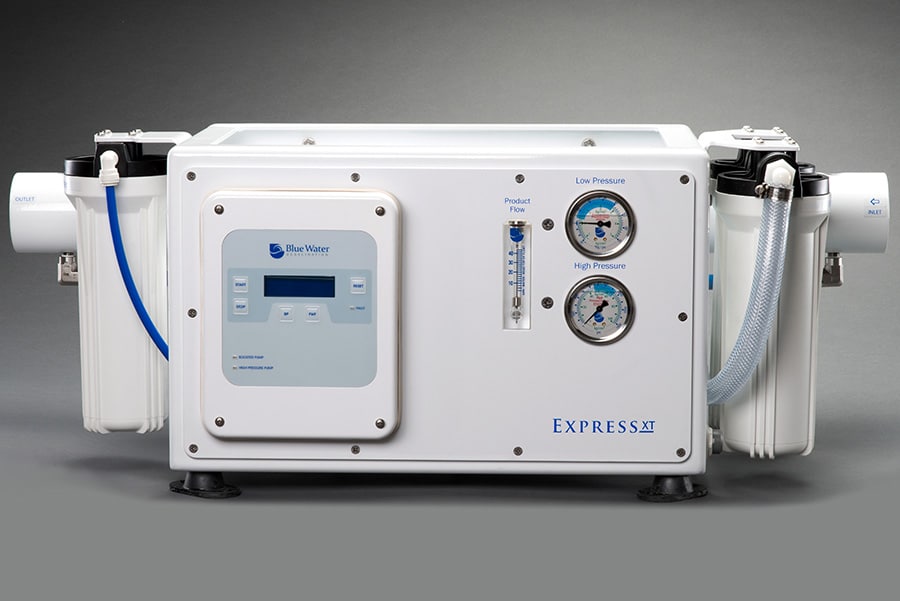

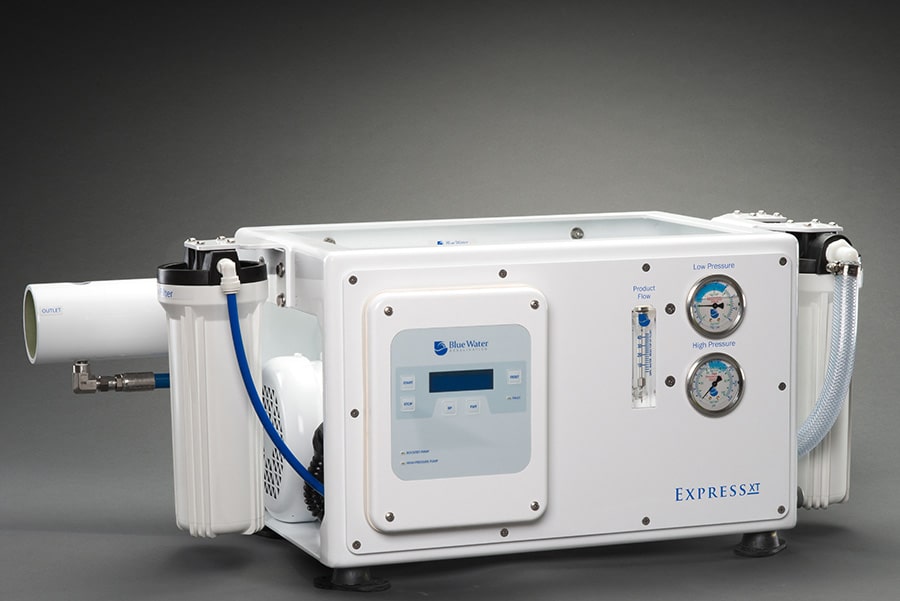

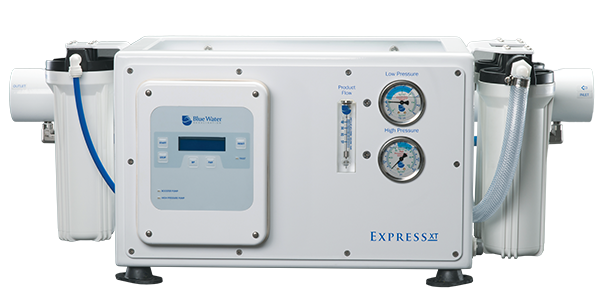

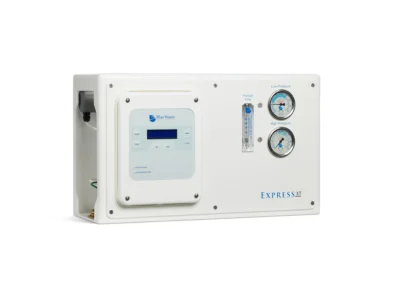

Express XT Compact
Express XT
Compact
Express XT Compact
Express XT
Compact
Express XT Compact
Express XT
Compact
Express XT Modular Controller
Express XT
Modular Controller
Express XT Modular Controller
Express XT
Modular Controller
Express XT Modular Controller
Express XT
Modular Controller
Optional Touchpad Remote
Optional Touchpad Remote
Booster Pump
Booster Pump

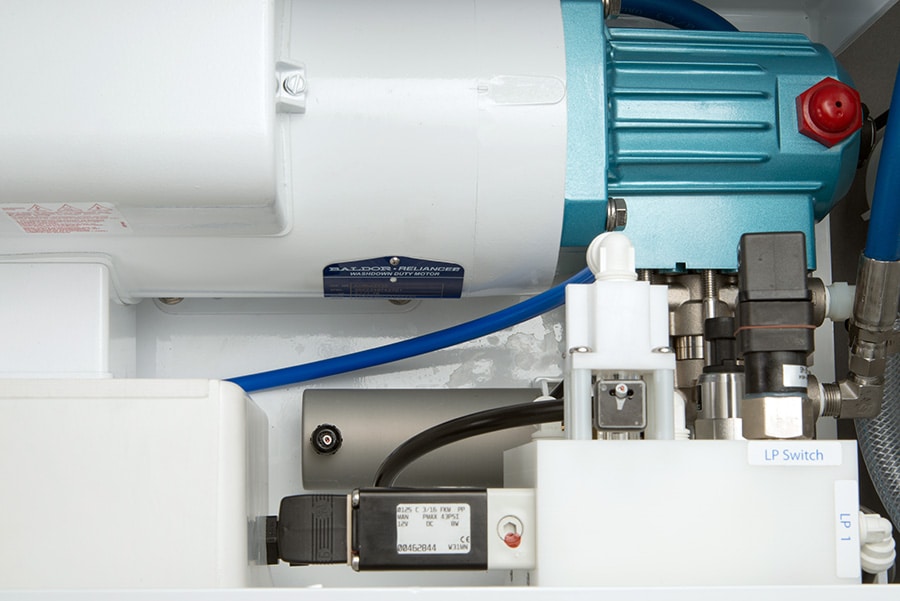

High Pressure Pump
High Pressure Pump
UV Sterilizer
UV Sterilizer
Fresh Water Flush
Fresh Water Flush
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses

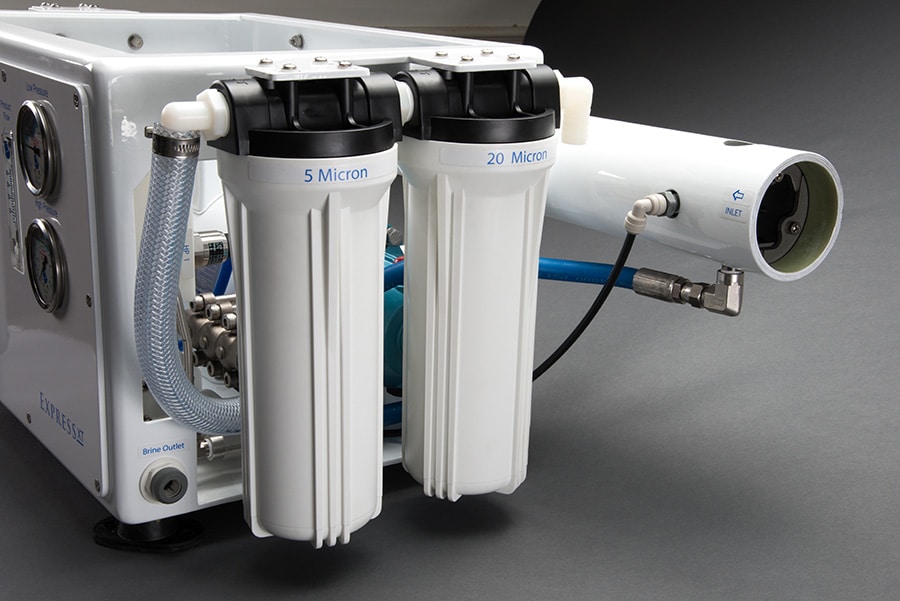

- Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
- Commercial Pre-Filter 20 Micron – Provides step down filtration to extend the life of the primary 5 micron filter
- Oil Water Separator Assembly – Removes oil from feed water

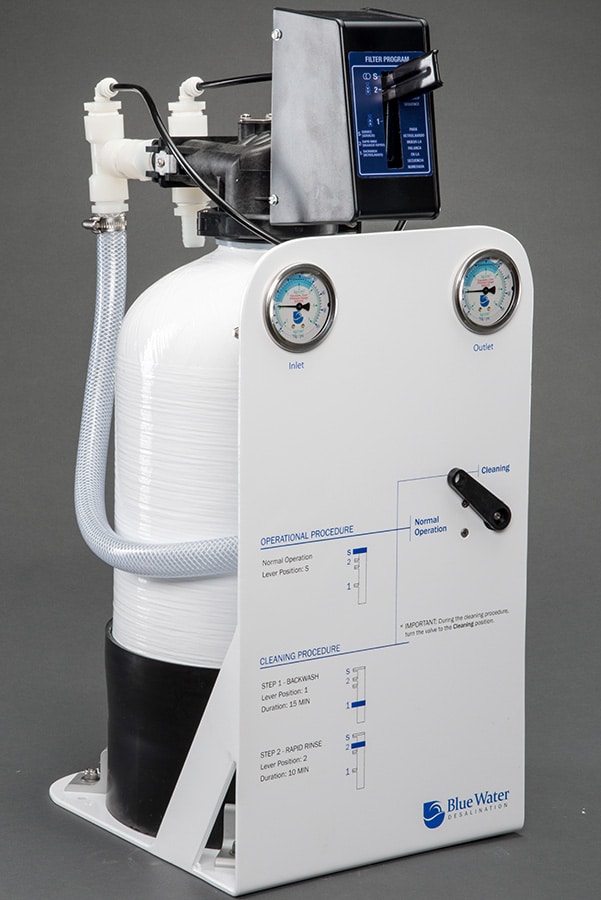

- Media Filter – Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- Touch Pad Remote with Bezel – With 75 ft. cable
- Touch Pad Remote with Bezel – With 100 ft. cable
- Touch Pad Remote with Bezel – With 150 ft. cable
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
| Model # | No. of Membranes | Production / hour | Production / 24 hour | Weight (lbs. / kg.) |
|---|---|---|---|---|
| EX XT 360 | 1 | 15 Gal / 57 L | 360 Gal / 1,360 L | 140 / 64 |
| EX XT 600 | 1 | 25 Gal / 95 L | 600 Gal / 2,270 L | 160 / 73 |
| EX XT 800 | 1 | 33 Gal / 126 L | 800 Gal / 3,030 L | 170 / 77 |
| EX XT 950 | 1 | 40 Gal / 150 L | 950 Gal / 3,600 L | 170 / 77 |
| Model # | Feed Flow GPM |
Booster Pump |
HP Pump HP | kW |
Run Amps 110V / 220V |
Start Amps 110V / 220V |
|---|---|---|---|---|---|
| EX XT 360 | 1.5 | 0.5 | 0.37 | 1 | 0.74 | 13A / 6.5A | 72A / 36A |
| EX XT 600 | 3 | 0.5 | 0.37 | 2 | 1.47 | 26A / 13A | 94A / 47A |
| EX XT 800 | 3 | 0.5 | 0.37 | 2 | 1.47 | 26A / 13A | 94A / 47A |
| EX XT 950 | 4.2 | 0.5 | 0.37 | 2.5 | 1.8 | 31A / 15.5A | 109A / 55A |
Express XT Model Standard Features
- Product Brochure (pdf)
- Booster Pump (pdf)
- Fresh Water Flush (pdf)
Express XT Compact
- Express XT Compact Frame (pdf)
Express XT Modular
- Express XT Modular Control Panel (pdf)
- 10″ Dual 5-20 Micron Filter (pdf)
- 10″ Carbon Filter (pdf)
- 1.5 GPM Pump Motor Assembly for Express XT 360Â (pdf)
- 3 GPM Pump Motor Assembly for Express XT 600, 800 & 950Â (pdf)
- 360 GPD Membrane (pdf)
- 600 GPD Membrane (pdf)
- 800 & 950 GPD Membrane (pdf)
Express XT Model Optional Equipment
