Express ClearMate
Developing Ultra-Pure Water from Seawater or Dock Water
The new for 2020 Blue Water Desalination Express ClearMate combines two of Blue Water Desalination’s efficient watermaker systems into one convenient package. Using the same leading-edge technology as the popular Express Series, you can now produce ultra-pure water from either seawater or dock water with the touch of a button. This system is available in several different configurations and production outputs to best meet our customer’s needs. Rated production from seawater ranges from 750 to 1,800 GPD (2,480 LPD to 6,810 LPD) and from 1,000 to 2,600 GPD (3,785 LPD to 9,840 LPD) from dock water.
- Dual-feed capability from seawater or dock water
- Three modes of operation:
- Fresh Water Flush system
- High Rejection membranes
- Dual voltage 50/60 Hz Motors
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance
Sea Water to Fresh Water
Sea Water to Ultra Pure Water
Dock Water to Ultra Pure Water
- Fully automatic operation
- Simple controller with digital display
- Monel transducers for longer life

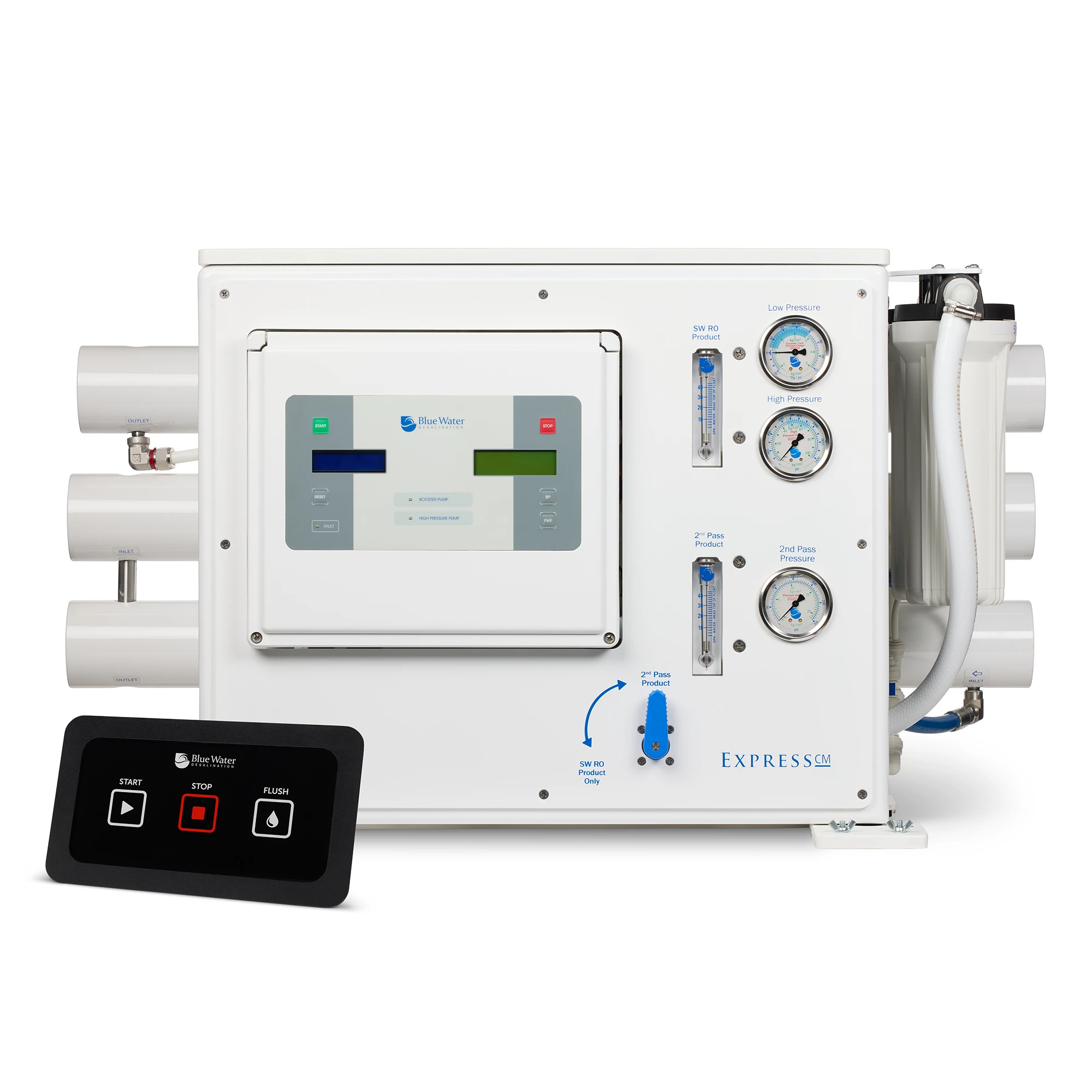

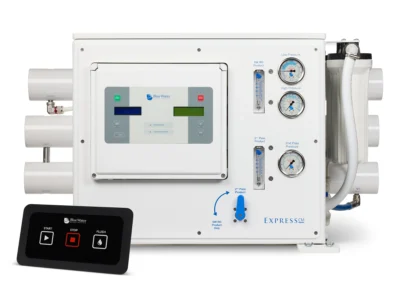

- Optional remote control
- Low pressure safety switch
- Offering multiple production capacities for seawater and freshwater

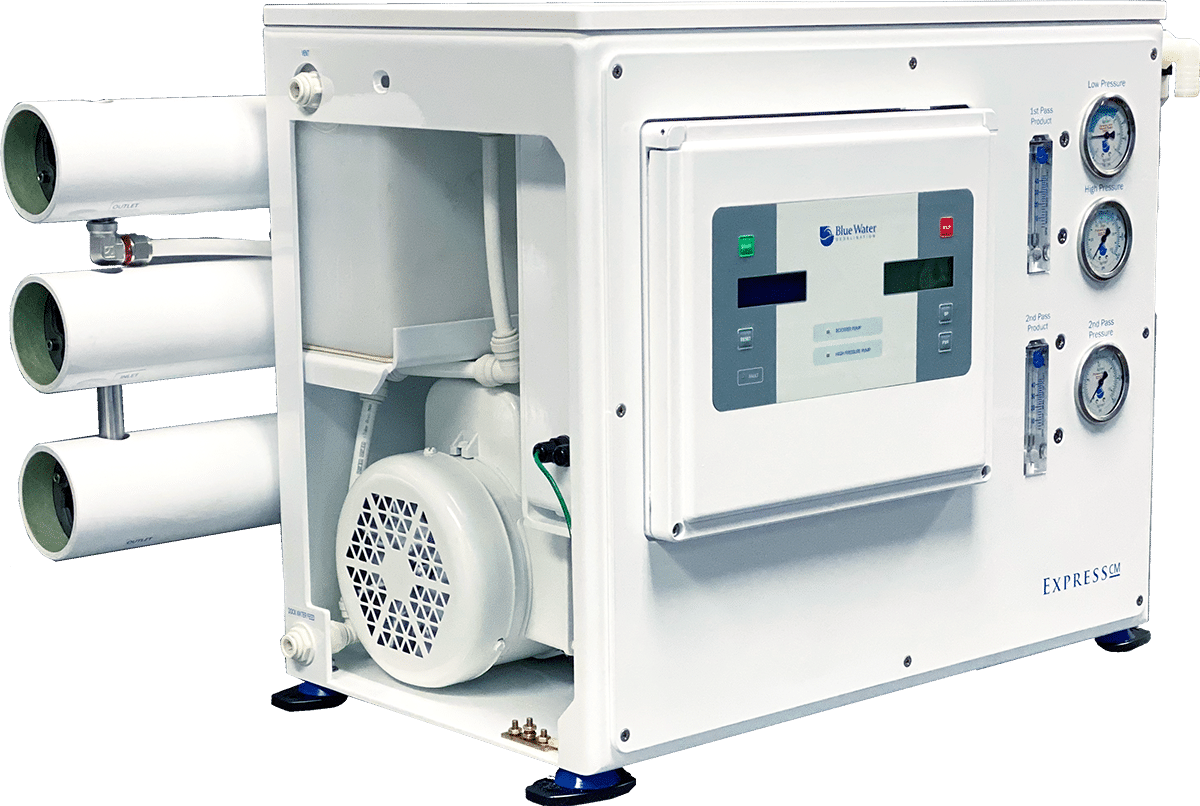

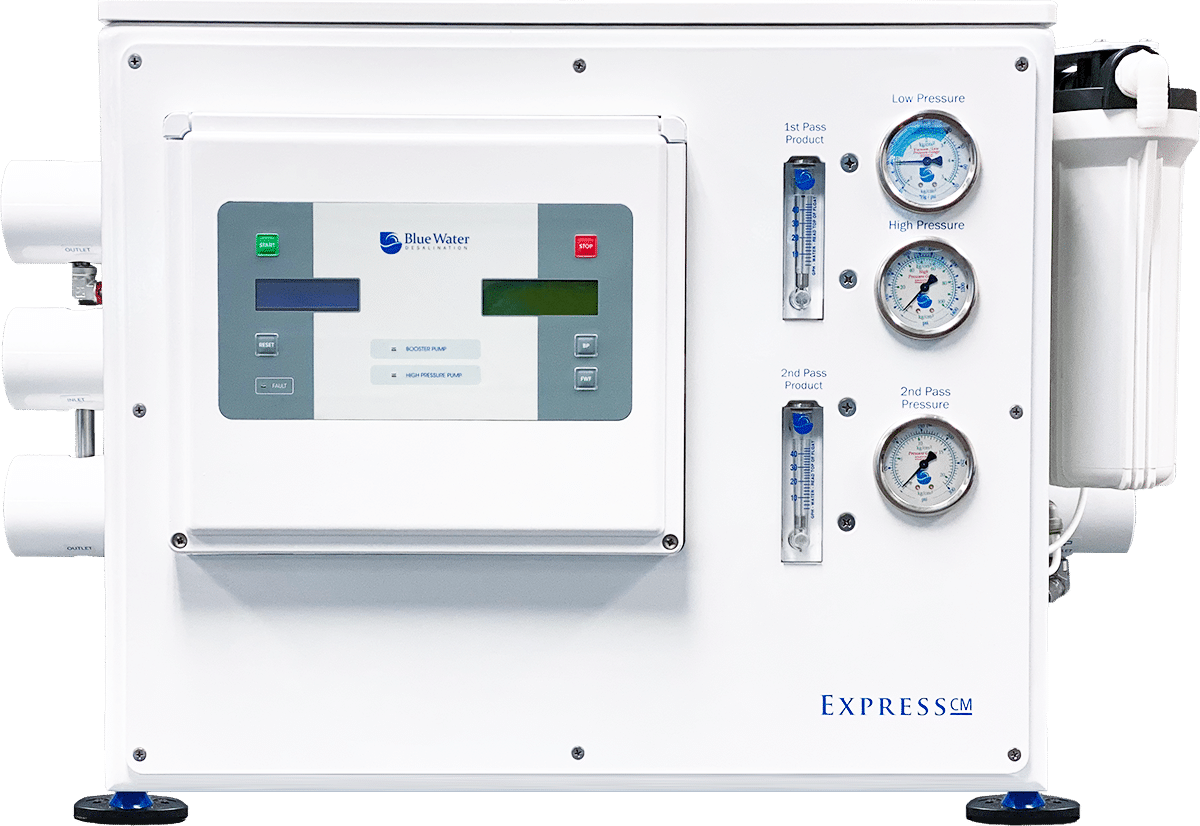

Express ClearMate Watermaker
Express ClearMate
Compact
Express ClearMate Watermaker
Express ClearMate
Compact
Express ClearMate Watermaker
Express ClearMate
Compact
Express ClearMate Frame Only
Express ClearMate
Frame Only
Express ClearMate Frame Only
Express ClearMate
Frame Only
Express ClearMate Frame Only
Express ClearMate
Frame Only

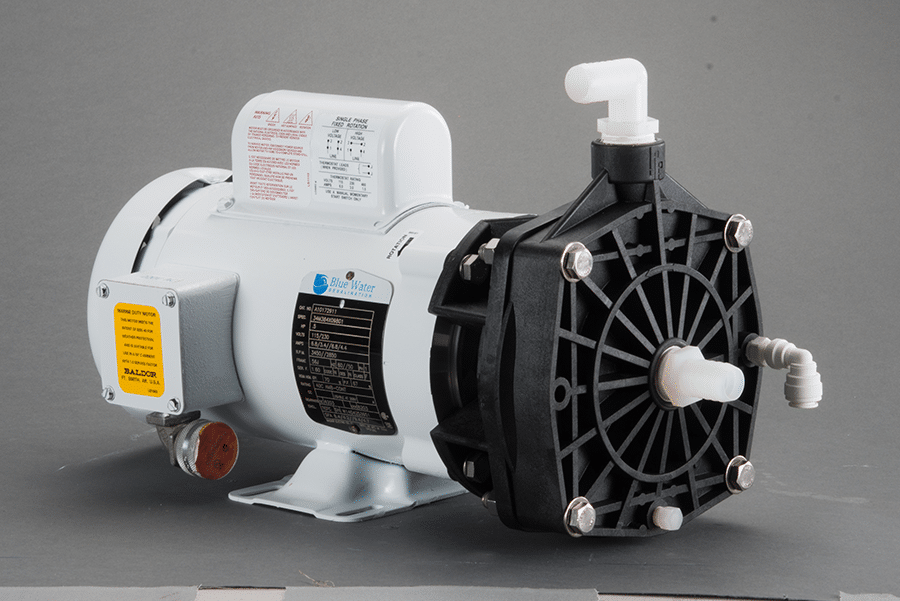

Booster Pump
Booster Pump
UV Sterilizer
UV Sterilizer
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses
- Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
- Commercial Pre-Filter 20 Micron – Provides step-down filtration to extend the life of the primary 5 micron filter
- Oil Water Separator Assembly – Removes oil from feed water
- Media Filter – Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
| Model # | Seawater Prod. / hour |
Seawater Prod. / 24 hour |
Freshwater Prod. / hour |
Freshwater Prod. / 24 hour |
Weight (lb / kg) |
|---|---|---|---|---|---|
| ESCM 750/1000 | 31 Gal / 118 L | 750 Gal / 2,480 L | 42 Gal / 157 L | 1,000 Gal / 3,785 L | 210 / 95 |
| ESCM 950/1400 | 40 Gal / 150 L | 950 Gal / 3,600 L | 42 Gal / 157 L | 1,400 Gal / 5,300 L | 215 / 98 |
| ESCM 1200/1000 | 50 Gal / 189 L | 1,200 Gal / 4,540 L | 42 Gal / 157 L | 1,000 Gal / 3,785 L | 225 / 102 |
| ESCM 1500/1000 | 63 Gal / 237 L | 1,500 Gal / 5,680 L | 42 Gal / 157 L | 1,000 Gal / 3,785 L | 225 / 102 |
| ESCM 1500/2000 | 63 Gal / 237 L | 1,500 Gal / 5,680 L | 83 Gal / 315 L | 2,000 Gal / 7,570 L | 240 / 109 |
| ESCM 1800/1400 | 75 Gal / 284 L | 1,800 Gal / 6,810 L | 42 Gal / 157 L | 1,400 Gal / 5,300 L | 225 / 102 |
| ESCM 1800/2600 | 75 Gal / 284 L | 1,800 Gal / 6,810 L | 83 Gal / 315 L | 2,600 Gal / 9,840 L | 250 / 114 |
| Model | Booster Pump HP | kW |
HP Pump (Seawater) HP | kW |
HP Pump (Freshwater) HP | kW |
Amps (Seawater) Run | Start |
Amps (Freshwater) Run | Start |
|---|---|---|---|---|---|
| ALL: 115V / 60Hz | 0.5 | 0.37 | 2.5 | 1.8 | 0.75 | 0.55 | 38A / 109A | 10A / 42A |
| ALL: 220V / 60/50Hz | 0.5 | 0.37 | 2.5 | 1.8 | 0.75 | 0.55 | 19A / 55A | 5A / 21A |
Express ClearMate Standard Features
