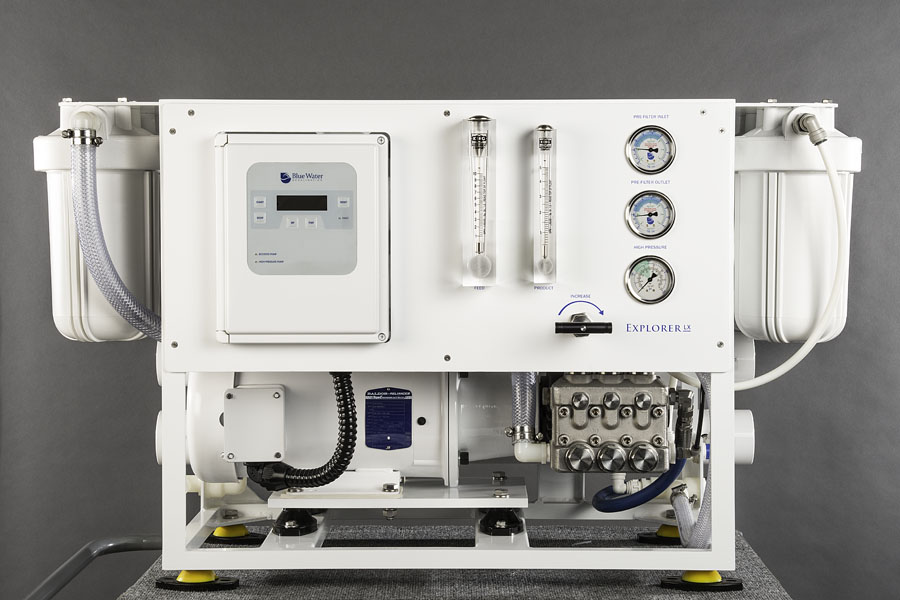

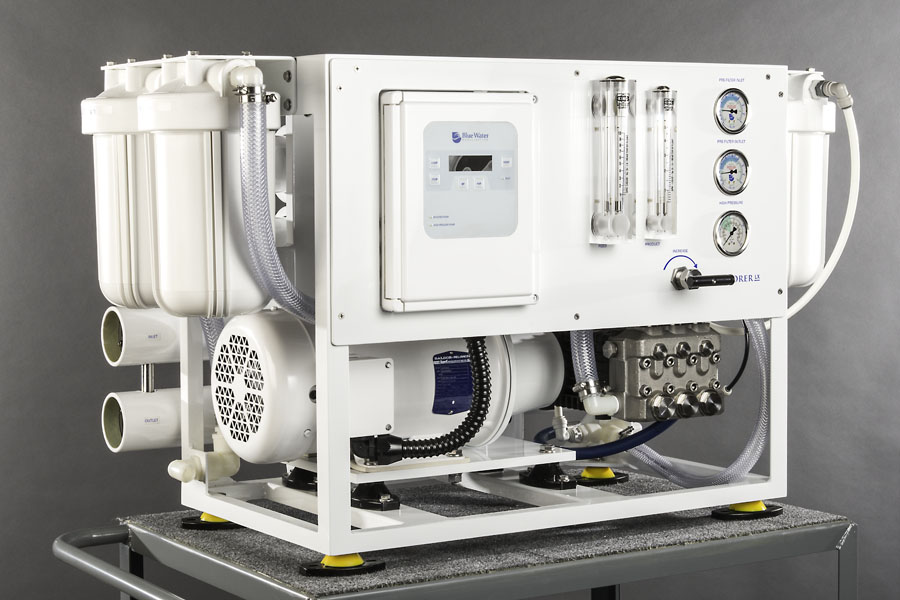

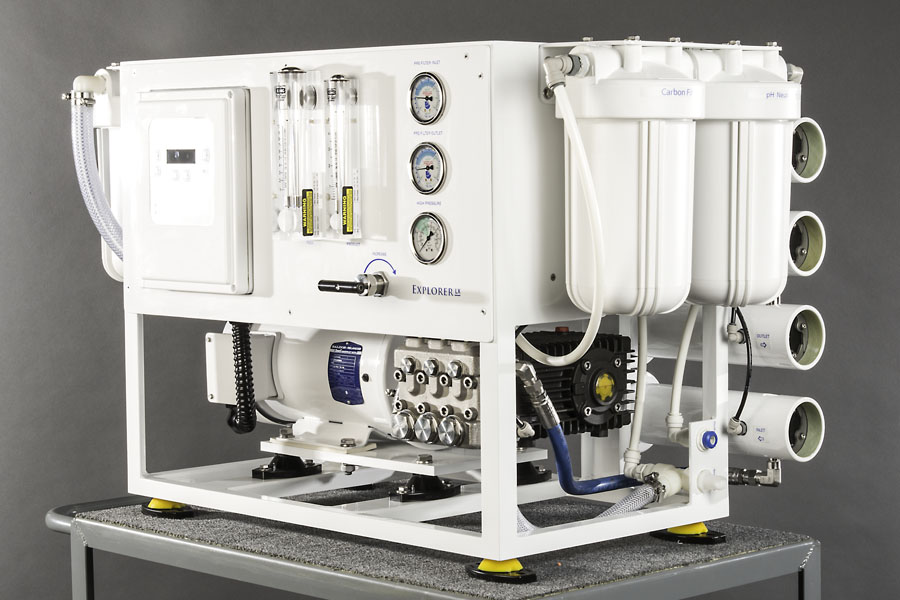

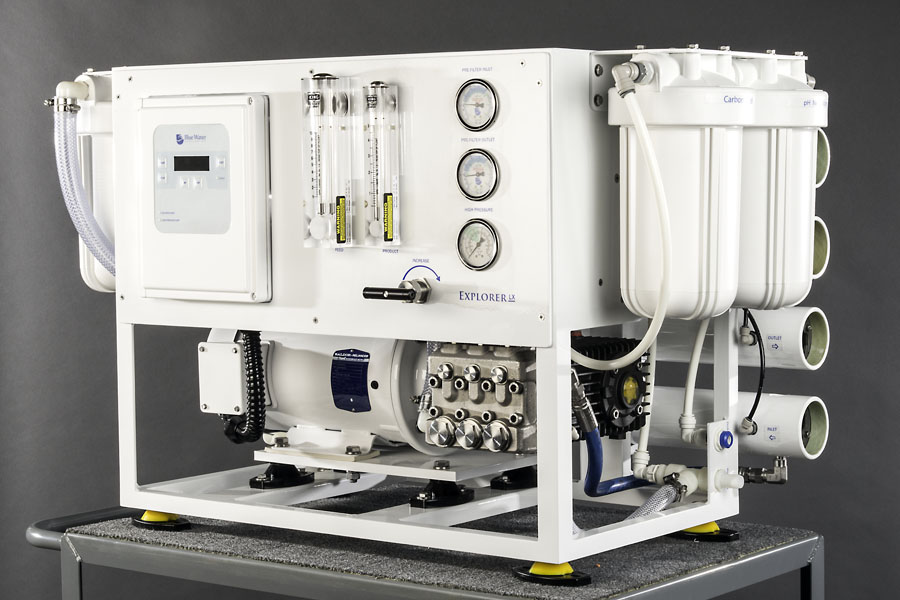

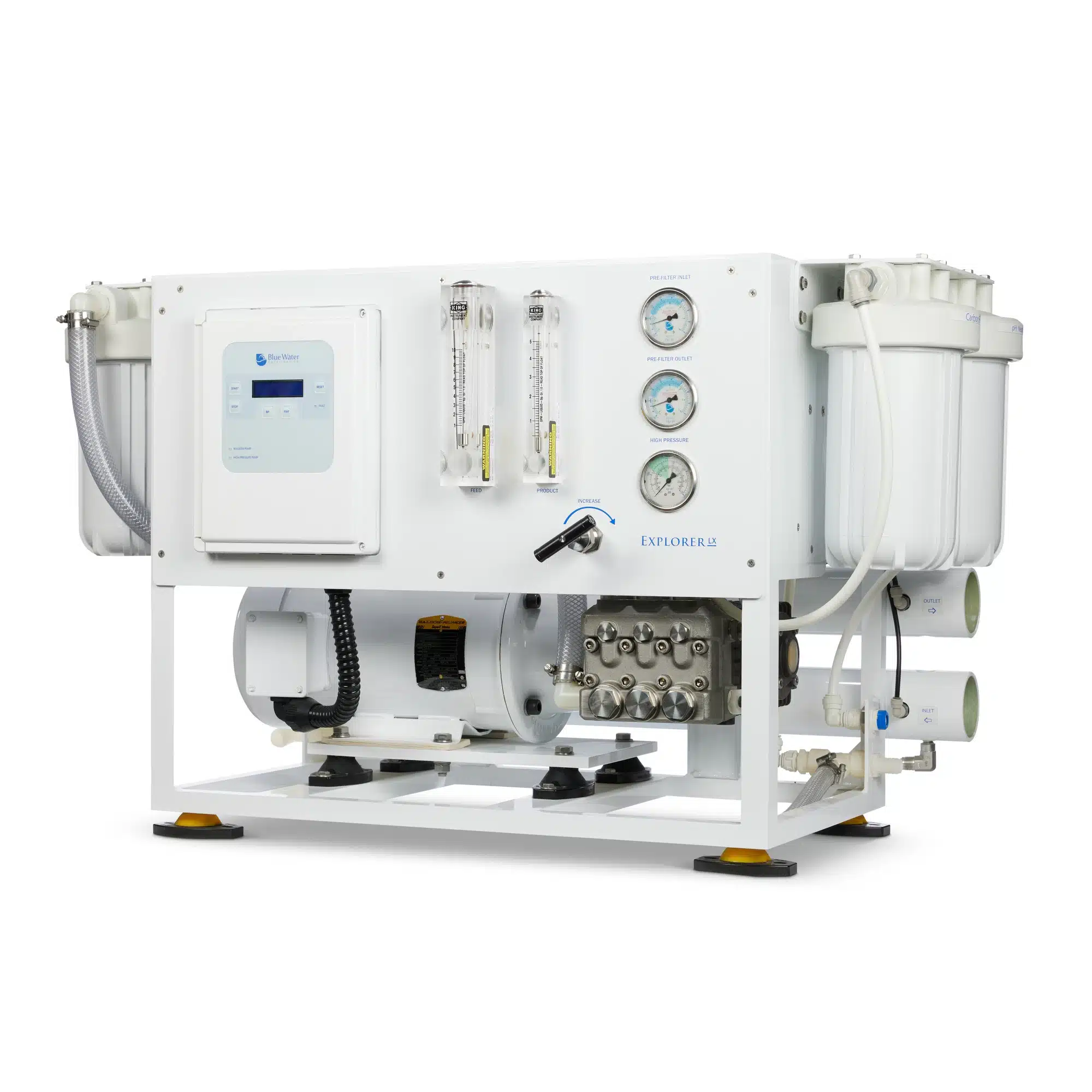

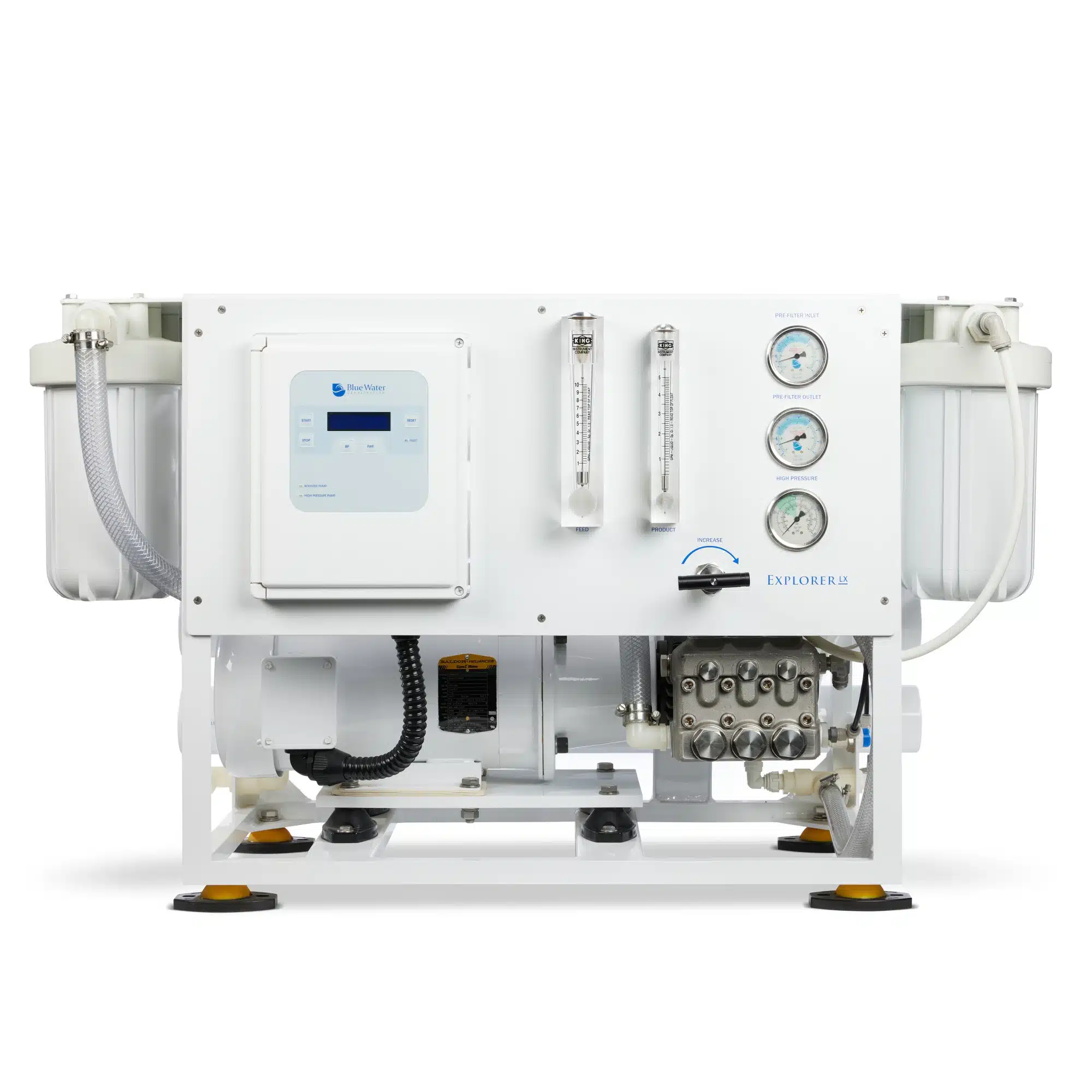

Explorer LX Series
Available capacities range from 2,100 GPD to 3,400 GPD (7,950 LPD to 12,870 LPD)
The Blue Water Explorer LX series of watermakers offers semi-automatic operation in a wide range of capacities to fit the needs of most large yachts and commercial vessels. The system is operated by traditional switches and a manually adjusted back pressure regulating valve. The electronic controller automatically diverts product water to the storage tank and an LCD display indicates product water salinity and system status. The Explorer LX series includes a Fresh Water Flush system as standard.
- Fresh Water Flush system
- High Rejection membranes
- Quiet and reliable high-pressure pumps

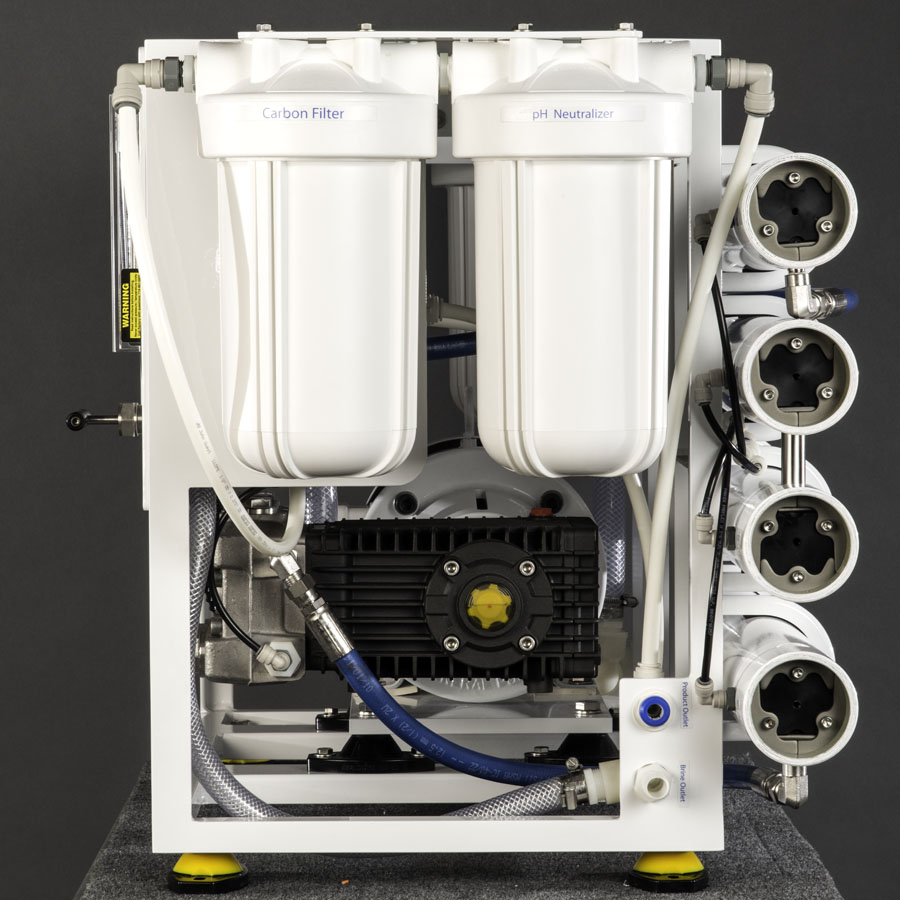

- Product water Carbon filter
- Dual voltage 50/60 Hz motors
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance
- Installation kit including bronze sea strainer
- Semi-Automatic operation
- Simple controller with LCD display
- Optional remote control
- Compact design
- Expandable to 3,400 gallons per day
- High and low-pressure safety switches
- Available in compact frame configuration

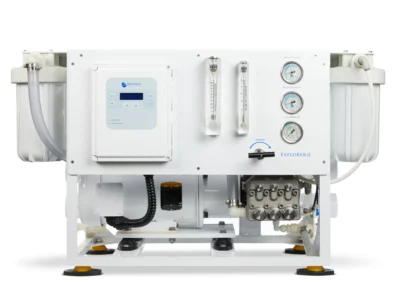

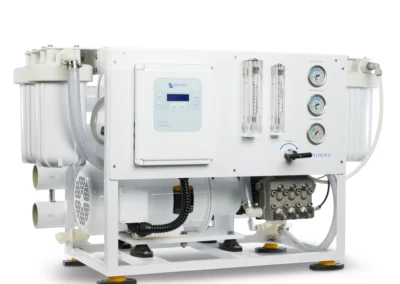

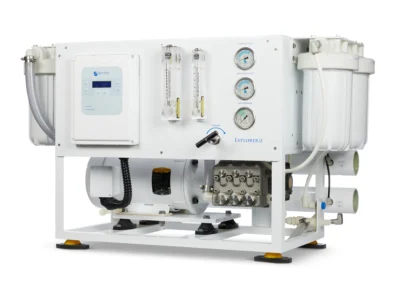

Explorer LX Compact
Explorer LX
Compact
Explorer LX Compact
Explorer LX
Compact
Explorer LX Compact
Explorer LX
Compact

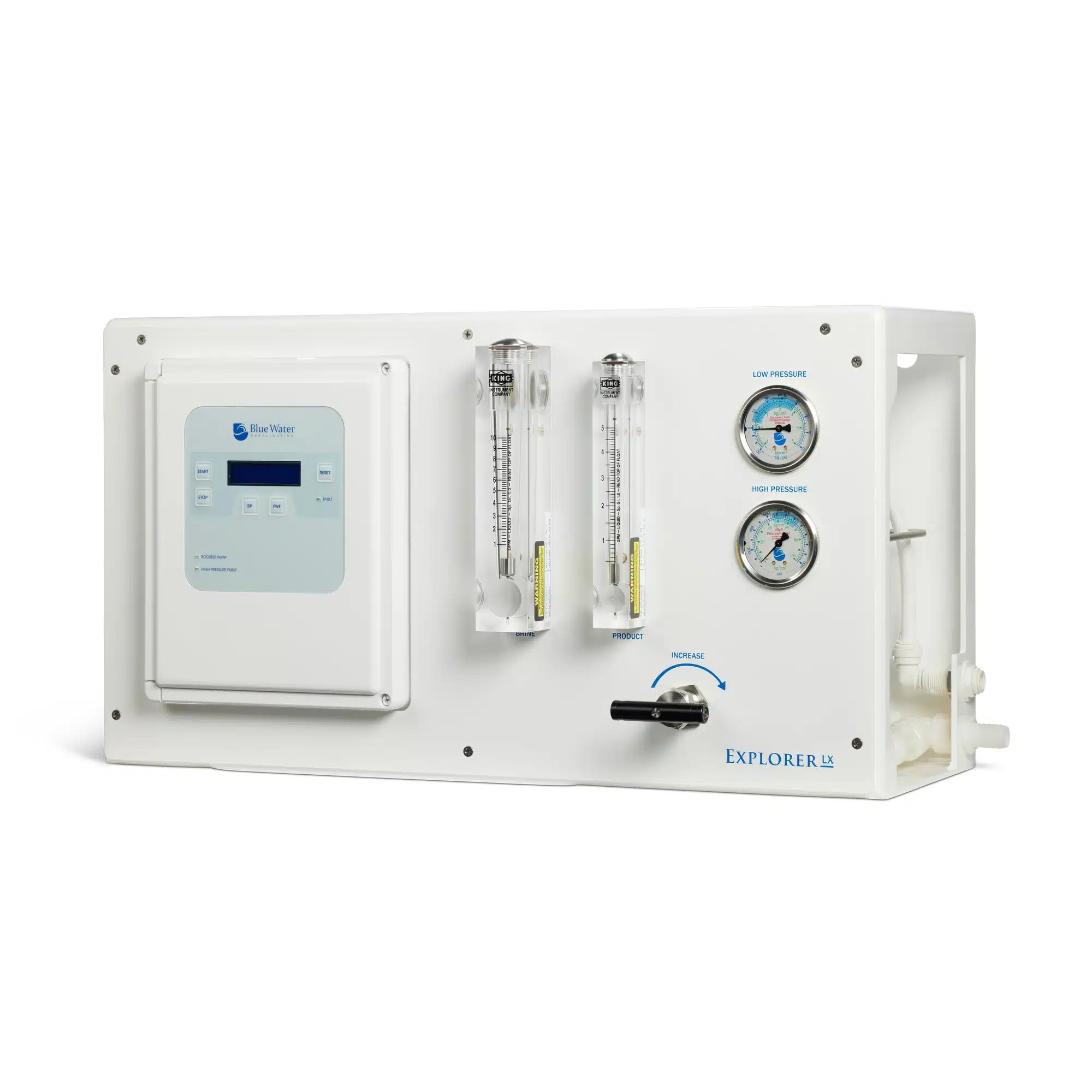

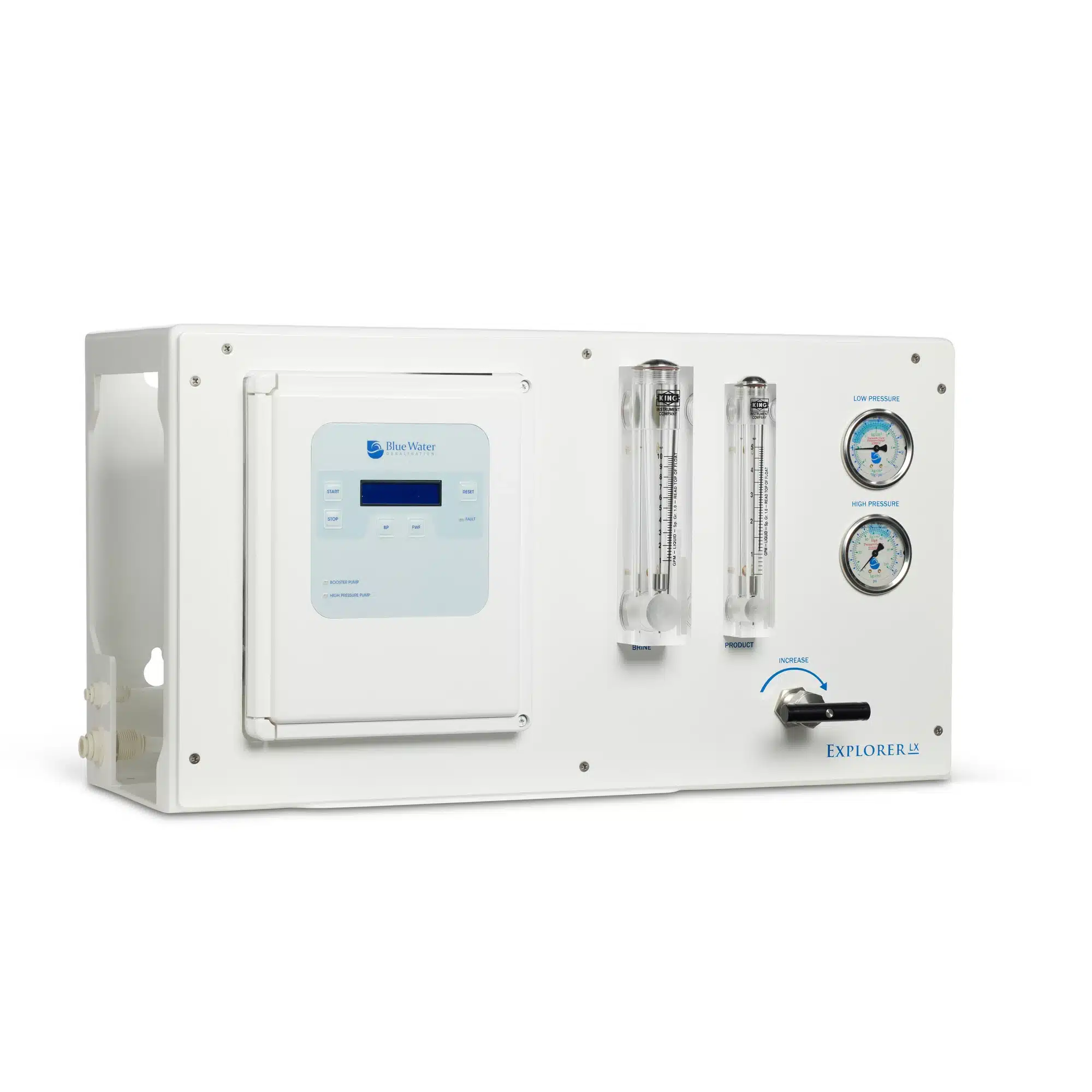

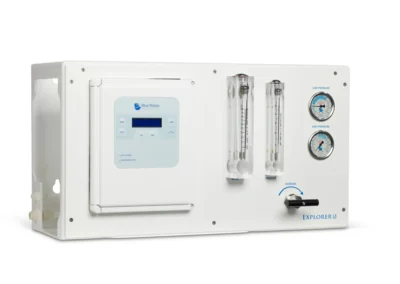

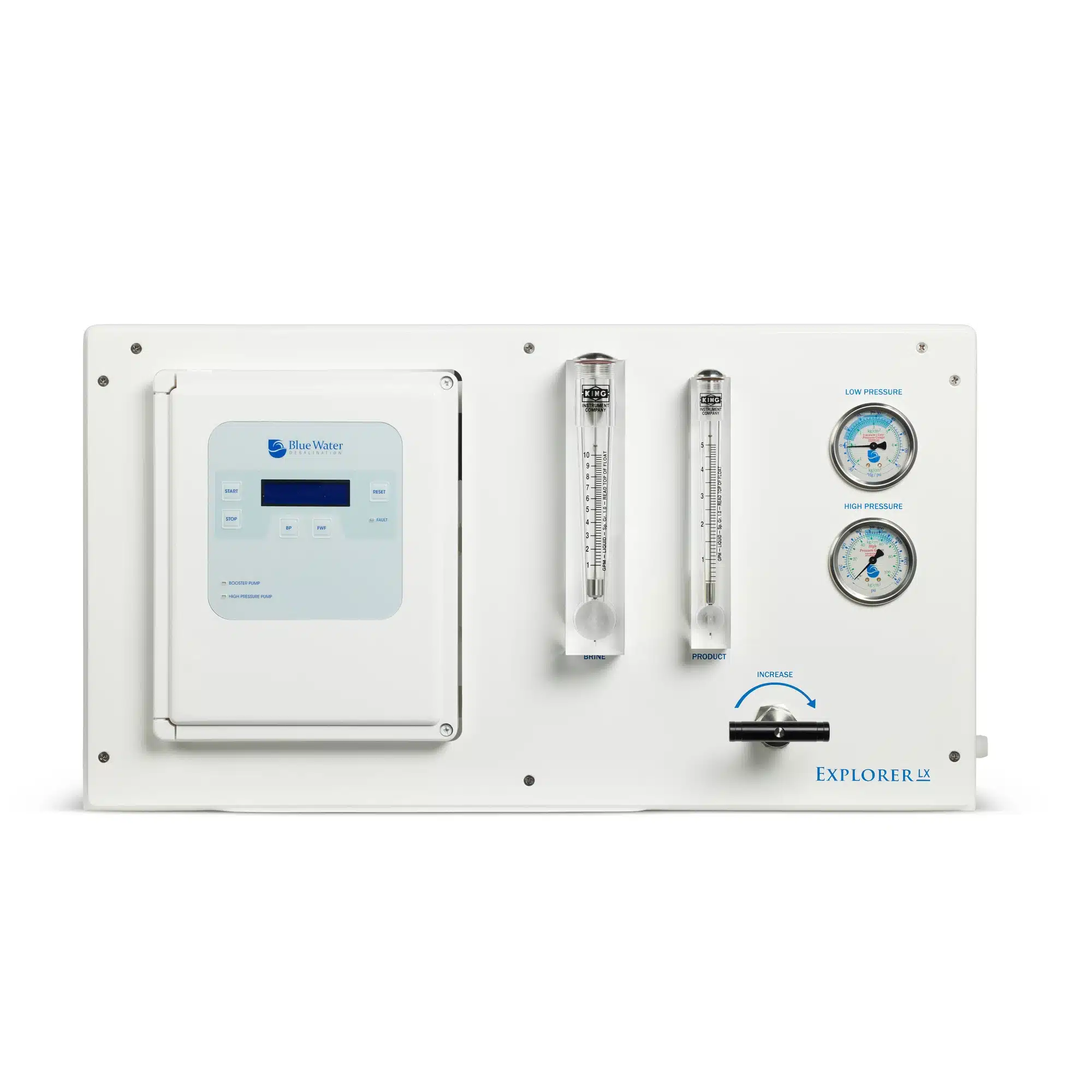

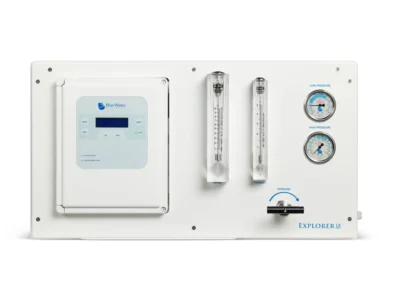

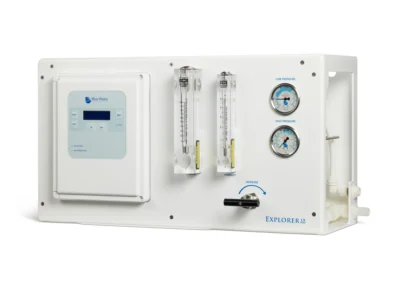

Explorer LX Frame Only
Explorer LX
Frame Only
Explorer LX Frame Only
Explorer LX
Frame Only
Explorer LX Frame Only
Explorer LX
Frame Only
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses

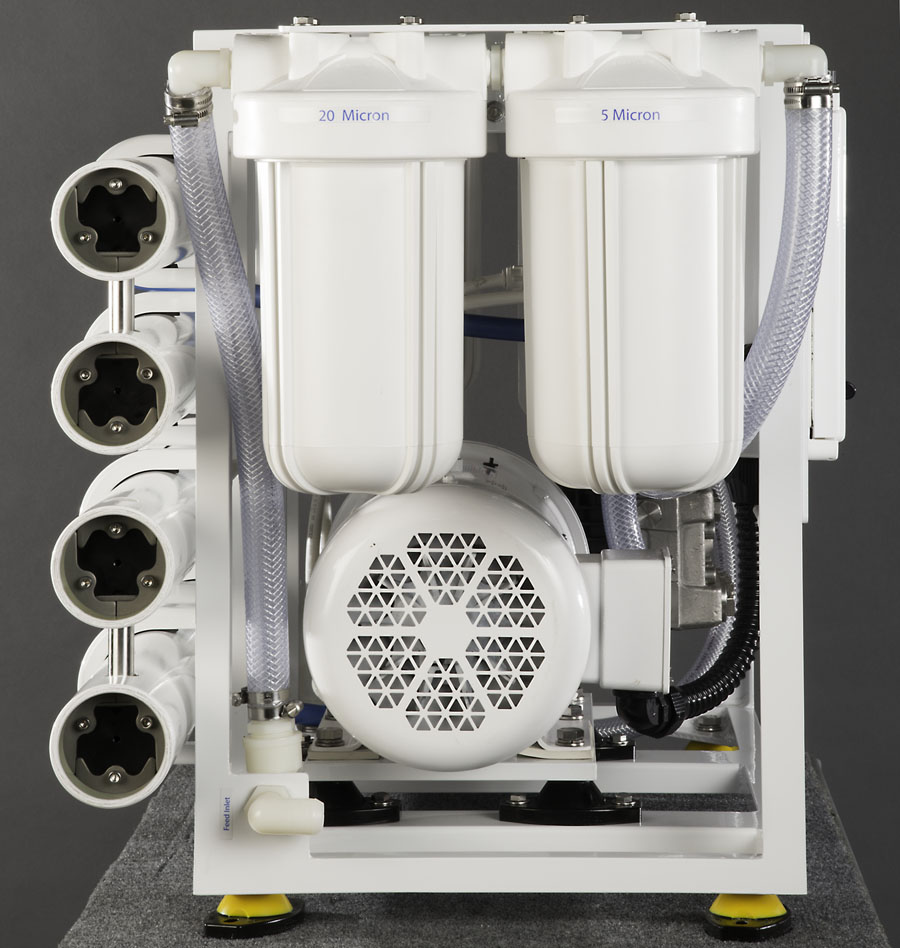

- Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
- Commercial Pre-Filter 20 Micron – Provides step down filtration to extend the life of the primary 5 micron filter
- Oil Water Separator Assembly – Removes oil from feed water
- Media Filter- Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- Touch Pad Remote with Bezel – With 75 ft. cable
- Touch Pad Remote with Bezel – With 100 ft. cable
- Touch Pad Remote with Bezel – With 150 ft. cable
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
| Model # | No. of Membranes | Production / hour | Production / 24 hour (Gallon / Liter) | Feed Flow GPM | Weight (lbs. / kg.) |
|---|---|---|---|---|---|
| EXX 2100 | 3 | 85 Gal. / 331 L | 2,100 / 7,950 | 7.6 | 355 / 161 |
| EXX 2600 | 4 | 108 Gal. / 410 L | 2,600 / 9,840 | 7.6 | 380 / 172 |
| EXX 2700 | 3 | 113 Gal. / 426 L | 2,700 / 10,220 | 7.6 | 385 / 175 |
| EXX 3200 | 4 | 133 Gal. / 505 L | 3,200 / 12,110 | 7.6 | 405 / 184 |
| EXX 3400 | 4 | 142 Gal. / 536 L | 3,400 / 12,870 | 7.6 | 405 / 184 |
| Model (Phase) | Booster Pump HP | kW | HP Pump HP | kW | Hz | Voltage | Run Amps | Start Amps |
|---|---|---|---|---|---|---|
| Single | 1 | 0.75 | 5 | 3.75 | 50/60 | 220 | 34 | 98 |
| Three | 1 | 0.75 | 5 | 3.75 | 50/60 | 208/230 | 22 / 18 | 48 / 40 |
| Three | 1 | 0.75 | 5 | 3.75 | 50/60 | 380/460 | 11 / 9 | 24 / 20 |
Explorer LX Model Standard Features
- Product Brochure (pdf)
- Explorer LX Compact (pdf)
- Booster Pump-Single Phase (pdf)
- Booster Pump-Three Phase (pdf)
- Fresh Water Flush (pdf)
Explorer LX Model Optional Equipment
