Explorer Series
Available capacities range from 475 GPD to 1,800 GPD (1,800 LPD to 6,810 LPD)
The Blue Water Explorer series of watermakers offers semi-automatic operation in a wide range of capacities to fit the needs of most mid to large-sized yachts. The system is operated by traditional switches and a manual high-pressure valve. An electronic controller automatically diverts product water to the storage tank and an LCD screen indicates product water salinity and system status. The Explorer series includes a Fresh Water Flush system as standard.
- Fresh Water Flush system
- High Rejection membranes
- Quiet and reliable high-pressure pumps
- Product water Carbon filter
- Dual voltage 50/60 Hz motors
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance
- Installation kit including bronze sea strainer
- Semi-Automatic operation
- Simple controller with LCD screen & hour meter
- Optional remote control
- Compact design
- Expandable to 1800 gallons per day
- High and low-pressure safety switches
- Available in both compact frame and modular component style configurations

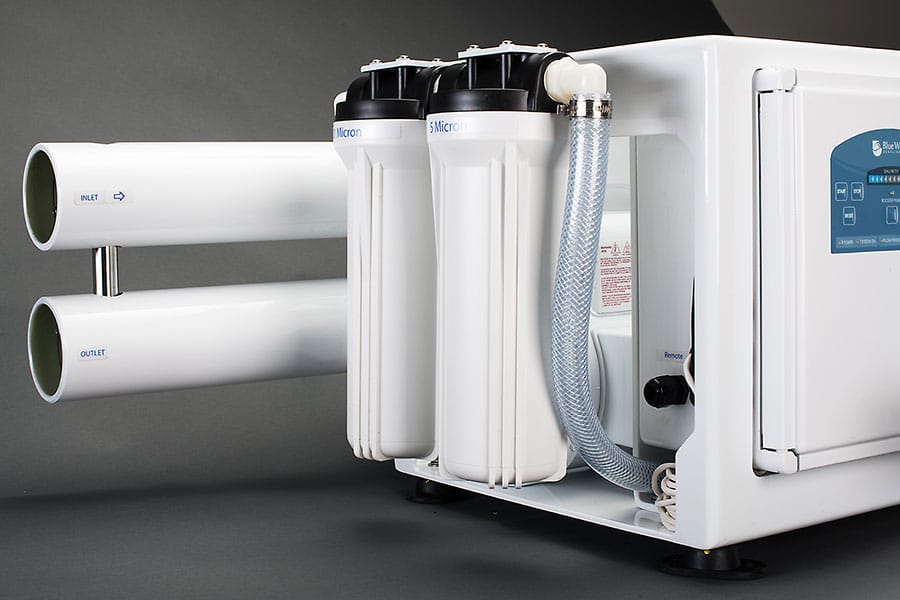

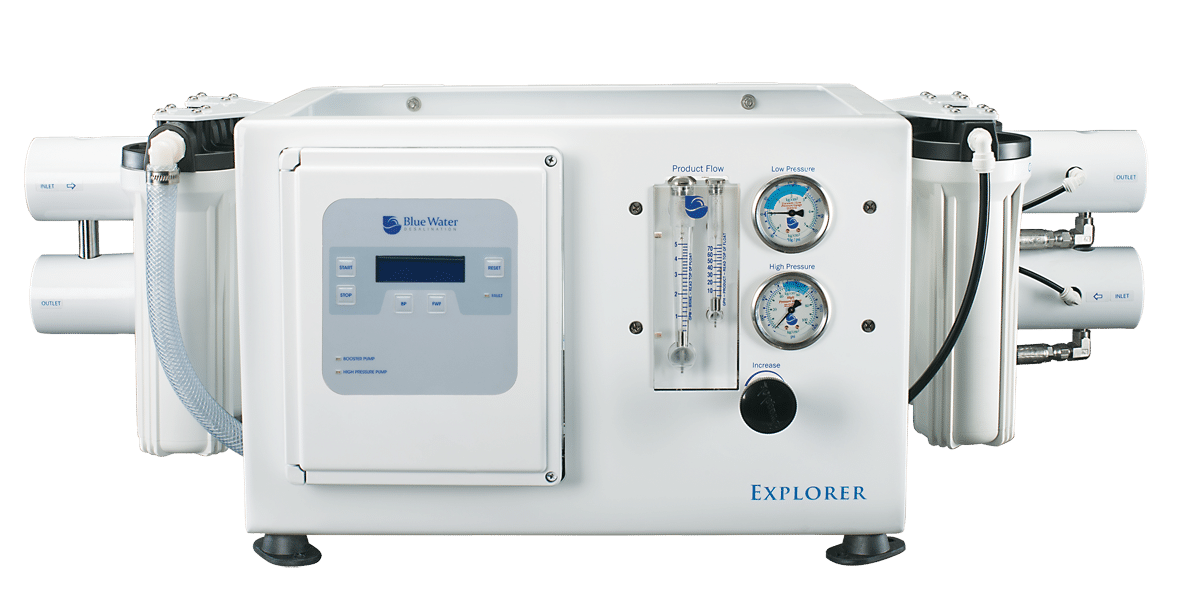

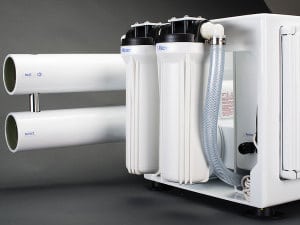

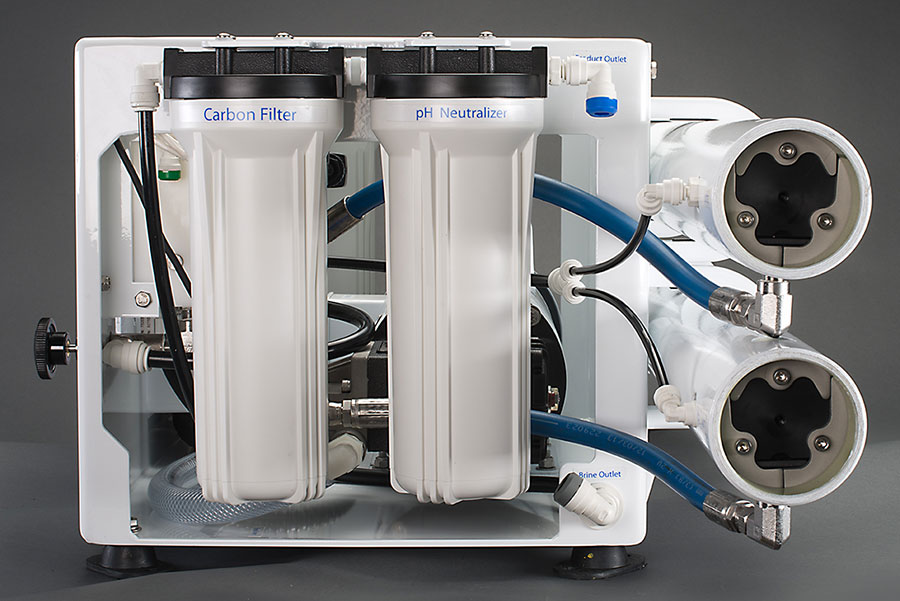

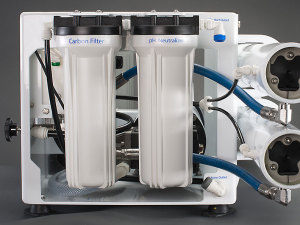

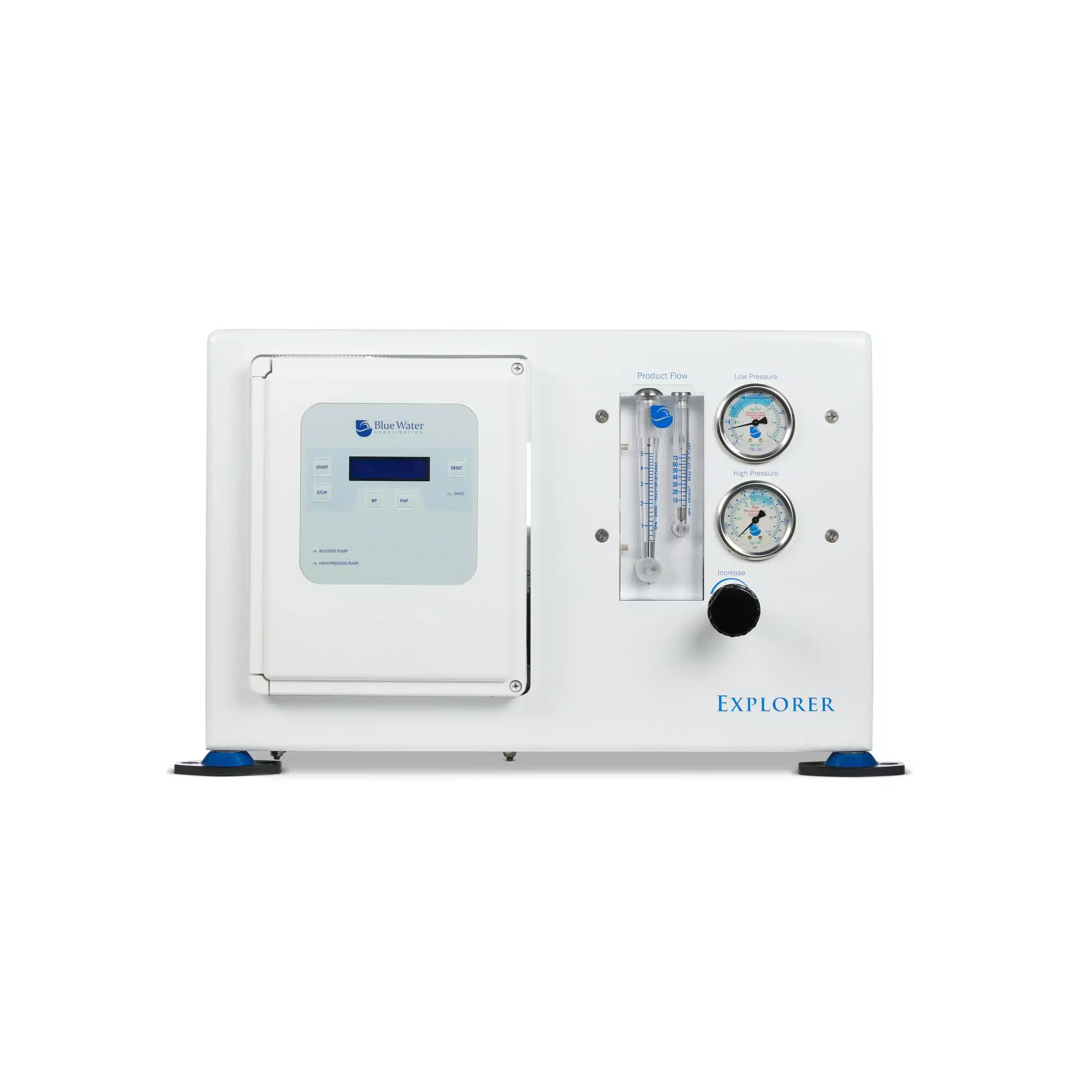

Explorer Compact
Explorer
Compact
Explorer Compact
Explorer
Compact
Explorer Compact
Explorer
Compact

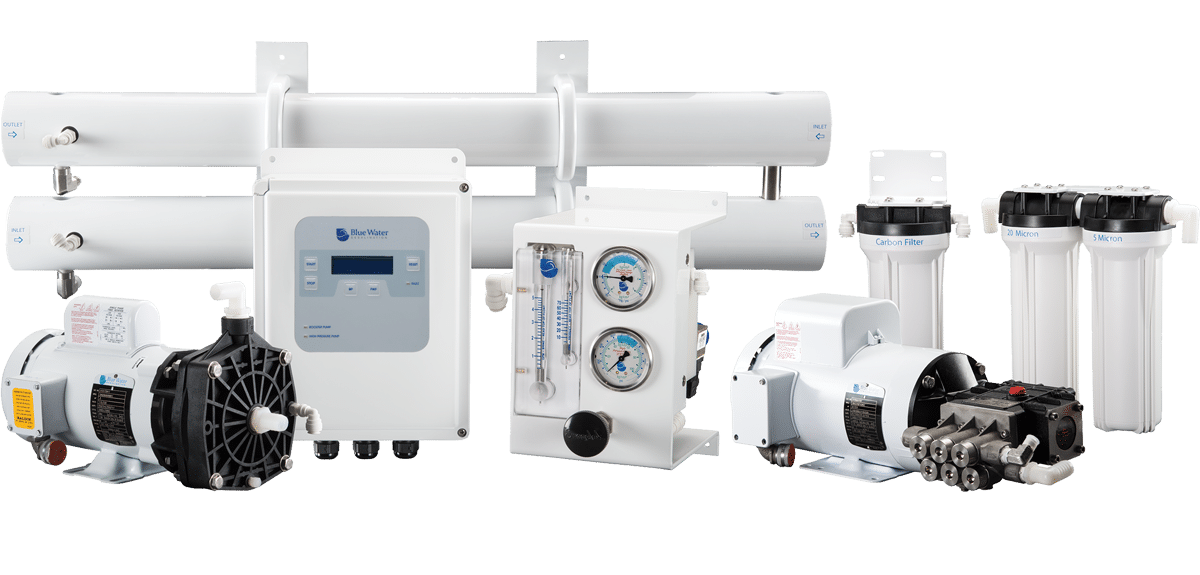

Explorer Modular Controller
Explorer
Modular Controller
Explorer Modular Controller
Explorer
Modular Controller
Explorer Modular Controller
Explorer
Modular Controller

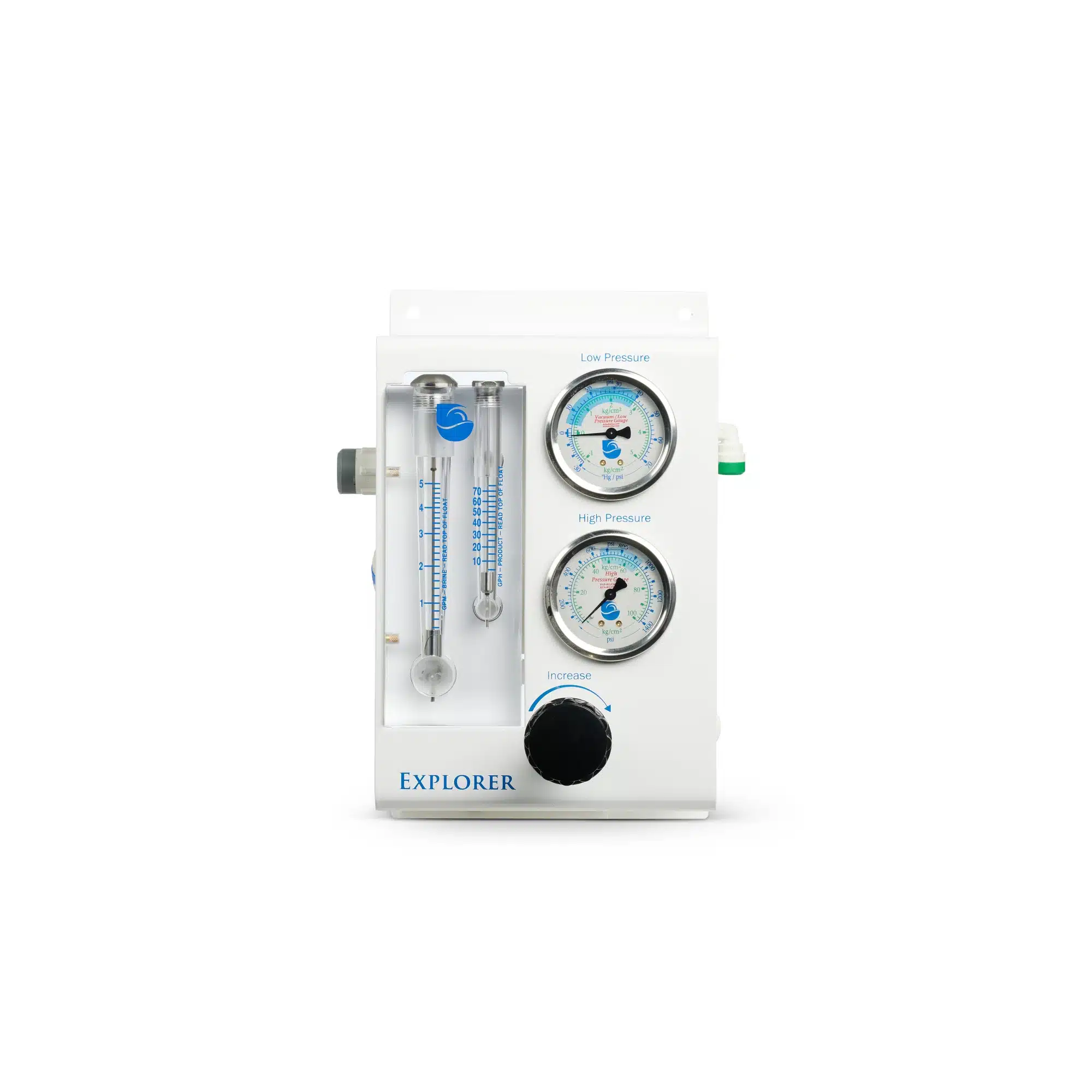

Explorer Modular Pressure Gauge
Explorer
Modular Pressure Gauge
Explorer Modular Pressure Gauge
Explorer
Modular Pressure Gauge
Fresh Water Flush
Fresh Water Flush
Booster Pump
Booster Pump
High Pressure Pump
High Pressure Pump
Optional Touchpad Remote
Optional Touchpad Remote
- UV Sterilizer 12Volt 2 GPM – Sterilizes product water to eliminate 99.8% of any remaining bacteria and viruses
- Commercial Pre-Filter 5 Micron – Provides 8 times the filtration of standard filters and saves 30% maintenance cost over the life of the filter
- Commercial Pre-Filter 20 Micron – Provides step down filtration to extend the life of the primary 5 micron filter
- Oil Water Separator Assembly – Removes oil from feed water
- Media Filter- Filters feed water to 30 micron. Extends the life of the 20 and 5 micron filters
- Touch Pad Remote with Bezel – With 75 ft. cable
- Touch Pad Remote with Bezel – With 100 ft. cable
- Touch Pad Remote with Bezel – With 150 ft. cable
- pH Neutralizer – Brings product water back to neutral state
- Pocket DC Meter – Portable meter checks product water quality
| Model # | No. of Membranes | Production / hour | Production / 24 hour (Gallon / Liter) | Feed Flow GPM | Weight (lbs. / kg.) |
|---|---|---|---|---|---|
| EXL 475 | 1 | 20 Gal / 75 L | 475 / 1,800 | 4.2 | 160 / 73 |
| EXL 750 | 1 | 31 Gal / 118 L | 750 / 2,840 | 4.2 | 170 / 77 |
| EXL 950-1 | 1 | 40 Gal / 150 L | 950 / 3,600 | 4.2 | 180 / 82 |
| EXL 950-2 | 2 | 40 Gal / 150 L | 950 / 3,600 | 4.2 | 195 / 88 |
| EXL 1200 | 2 | 50 Gal / 189 L | 1,200 / 4,540 | 4.2 | 210 / 95 |
| EXL 1500 | 2 | 63 Gal / 237 L | 1,500 / 5,680 | 4.2 | 210 / 95 |
| EXL 1800 | 2 | 75 Gal / 284 L | 1,800 / 6,810 | 4.2 | 225 / 102 |
| Model (Phase) |
Booster Pump HP | kW |
HP Pump HP | kW |
Hz | Voltage | Run Amps | Start Amps |
|---|---|---|---|---|---|---|
| Single | 0.50 | 0.37 | 2.5 | 1.8 | 50/60 | 110/220 | 31 / 15.5 | 109 / 55 |
| Three | 0.50 | 0.37 | 3.0 | 2.2 | 50/60 | 208/230 | 10.6 / 8.9 | 37 / 36 |
| Three | 0.50 | 0.37 | 3.0 | 2.2 | 50/60 | 380/460 | 5.3 / 4.4 | 18 / 16 |
Explorer Model Standard Features
- Product Brochure (pdf)
- Booster Pump-Single Phase (pdf)
- Booster Pump-Three Phase (pdf)
- Fresh Water Flush (pdf)
Explorer Compact Full Frame
- Explorer Full Frame (pdf)
Explorer Modular
- Explorer Modular Control Panels (pdf)
- 10″ Dual 5-20 Micron Filter (pdf)
- 10″ Carbon Filter (pdf)
- 4.2 GPM Pump Motor-Single Phase (pdf)
- 4.2 GPM Pump Motor-Three Phase (pdf)
Explorer Compact Open Frame
- Explorer Open Frame (pdf)
Explorer Model Optional Equipment
